Installation [11/2023 - ]: Procedure

1. Check that the ignition switch is off.
2. Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
   WARNING:

   Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

3. Engage the 4 clamps to connect the airbag wire harness.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

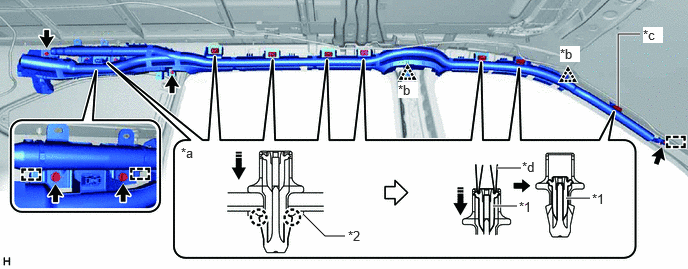

4. Insert the 3 hooks and install the curtain shield airbag assembly with 5 new bolts, a new spacer, 8 new clips (A) with pins, and engage the 2 clips (B).

   Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

   NOTE:

   Do not twist the curtain shield airbag assembly when installing it.

   HINT:

   Engage the 2 claws to install each new clip (A).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Pin	*2	Spacer
   *a	Clip (A)	*b	Clip (B)
   *c	Spacer Location	*d	Needle Nose Pliers No. 2
   	Install in this Direction	-	-

5. Using a needle nose pliers No. 2 or equivalent, push the 8 pins into the 8 clips (A).
   NOTE:

   • Do not damage the pins.
   • Make sure that the pins of the clips (A) are pushed in firmly.
6. Connect the airbag connector.
   NOTE:

   When connecting any airbag connector, take care not to damage the airbag wire harness.

   HINT:

   Refer to How to Connect or Disconnect Airbag Connector.

   Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [11/2023 - ]

for T24A-FTS: Refer to PROCEDURE - Step 4

for A25A-FXS: Refer to PROCEDURE - Step 2

Refer to INSTALLATION [10/2022 - ]

Refer to OPERATION CHECK [11/2023 - ]

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2023 - ]
