Components [12/2019 - 10/2021]

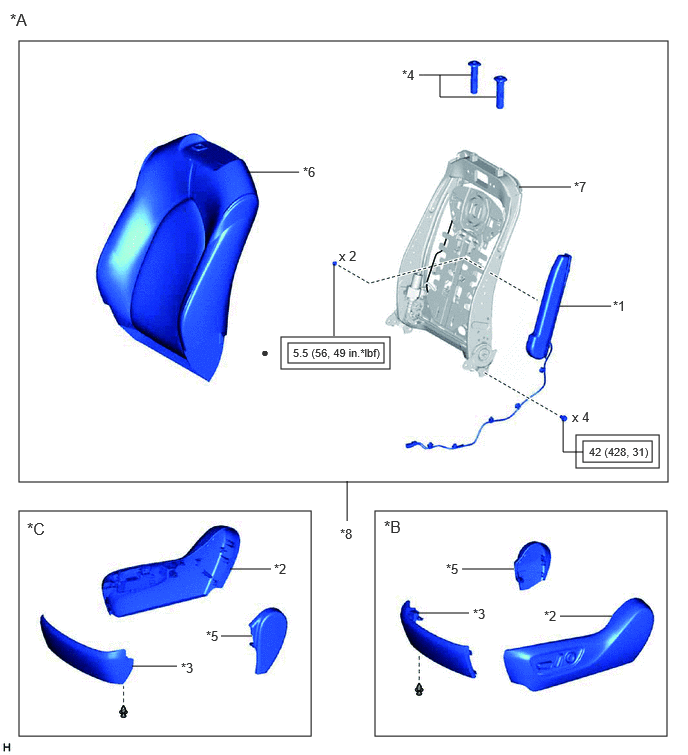

Fig 1: Front Seat Side Airbag Assembly Replacement Components With Torque Specifications [12/2019 - 10/2021] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Power Seat | *B | for Driver Side |
| *C | for Front Passenger Side | - | - |
| *1 | FRONT SEAT AIRBAG ASSEMBLY | *2 | FRONT SEAT CUSHION SHIELD |
| *3 | FRONT SEAT FRONT CUSHION SHIELD | *4 | FRONT SEAT HEADREST SUPPORT ASSEMBLY |
| *5 | FRONT SEAT INNER CUSHION SHIELD | *6 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD |
| *7 | SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY | *8 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

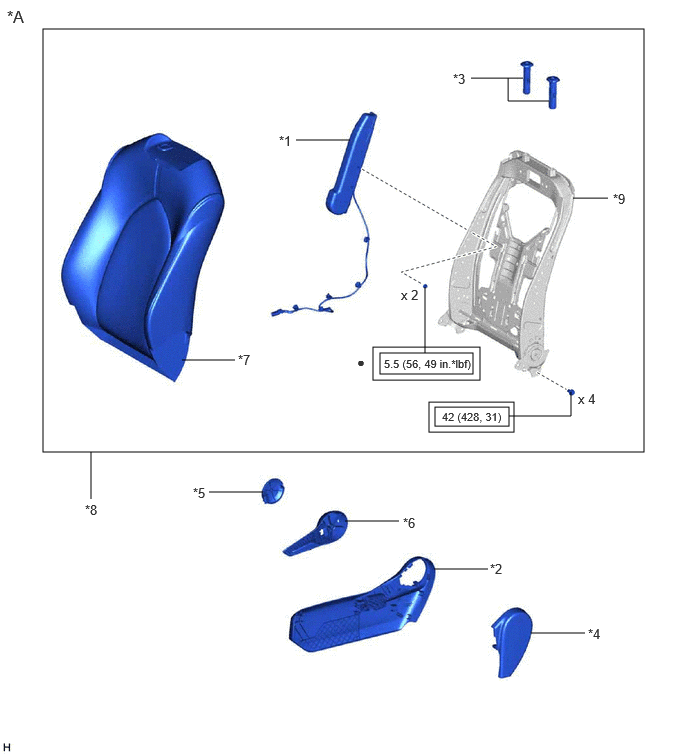

Fig 2: Front Seat Side Airbag Assembly Replacement Components With Torque Specifications [12/2019 - 10/2021] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Manual Seat | - | - |
| *1 | FRONT SEAT AIRBAG ASSEMBLY | *2 | FRONT SEAT CUSHION SHIELD |
| *3 | FRONT SEAT HEADREST SUPPORT ASSEMBLY | *4 | FRONT SEAT INNER CUSHION SHIELD |
| *5 | RECLINING HINGE COVER | *6 | RECLINING ADJUSTER RELEASE HANDLE |
| *7 | SEPARATE TYPE FRONT SEATBACK COVER WITH PAD | *8 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY |
| *9 | SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
