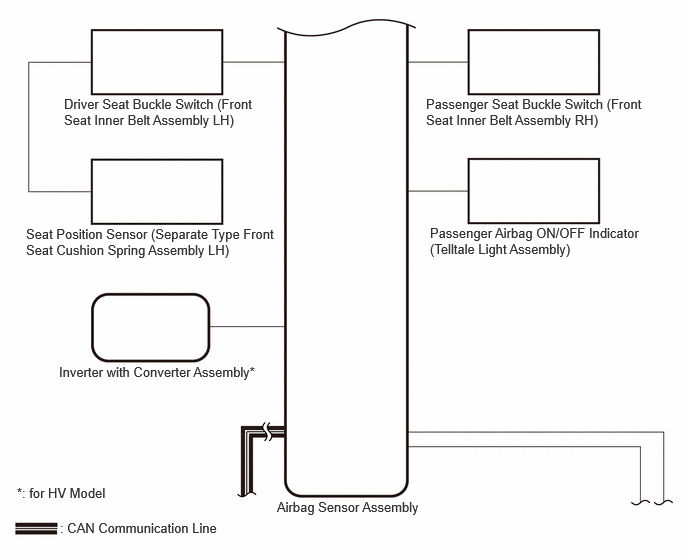

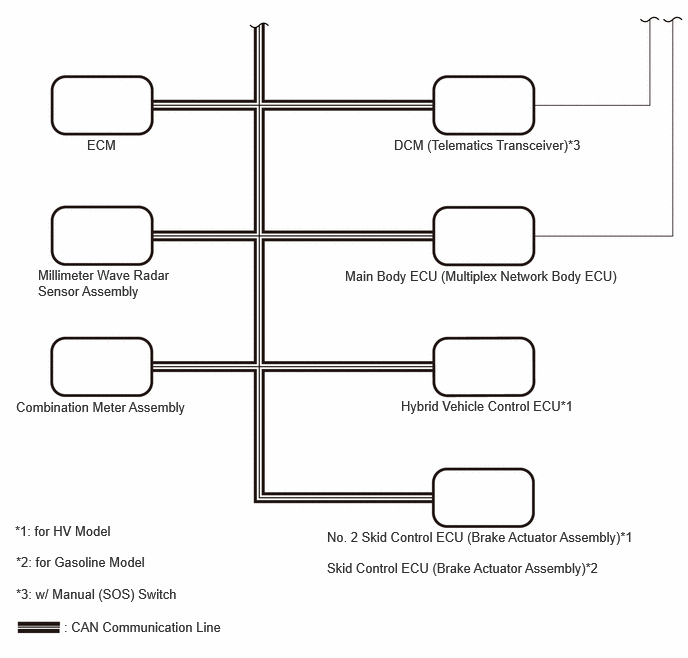

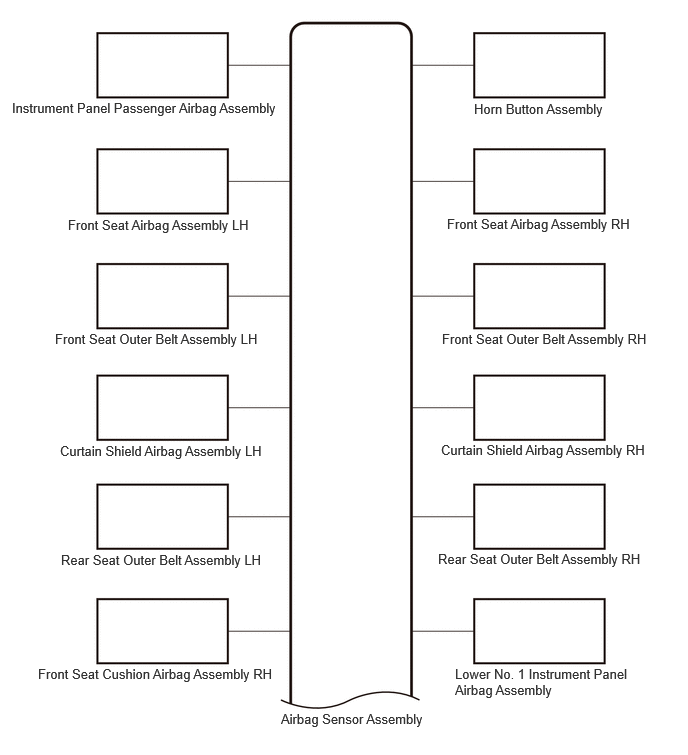

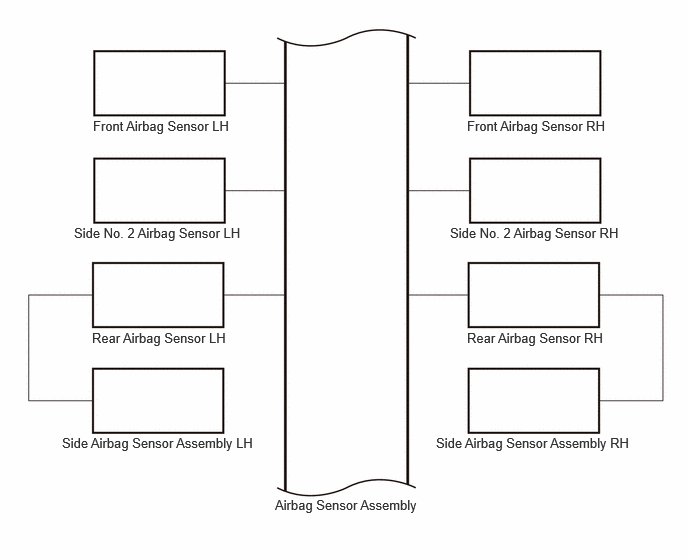

System Diagram [11/2023 - ]
COMMUNICATION TABLE
| Transmitting ECU / Parts (Transmitter) |
Receiving ECU / Parts (Receiver) |
Signal | Communication Method |
|---|---|---|---|
| Front Airbag Sensor | Airbag Sensor Assembly | Front collision G signal | Direct line |
| Side No. 2 Airbag Sensor | Side collision G signal | ||
| Rear Airbag Sensor | Side collision G signal | ||
| Side Airbag Sensor Assembly | Side collision P signal | ||
| Seat Position Sensor (Separate Type Front Seat Cushion Spring Assembly LH) | Driver seat position signal | ||
| Driver Seat Buckle Switch (Front Seat Inner Belt Assembly LH) | Driver seat belt fastened signal | ||
| Passenger Seat Buckle Switch (Front Seat Inner Belt Assembly RH) | Passenger seat belt fastened signal | ||
| Airbag Sensor Assembly | Horn Button Assembly | Ignition signal | Direct line |
| Instrument Panel Passenger Airbag Assembly | |||
| Front Seat Airbag Assembly | |||
| Front Seat Cushion Airbag Assembly | |||
| Lower No. 1 Instrument Panel Airbag Assembly | |||
| Curtain Shield Airbag Assembly | |||
| Front Seat Outer Belt Assembly | |||
| Rear Seat Outer Belt Assembly | |||
| DCM (Telematics Transceiver)*1 | Collision detection signal (for mayday output) | ||
| Main Body ECU (Multiplex Network Body ECU) | Collision detection signal (for door lock release) | ||
| Inverter with Converter Assembly*2 | Collision detection signal (for hybrid high voltage release) | ||
| Passenger Airbag ON/OFF Indicator (Telltale Light Assembly) |
|
||
| ECM | Collision detection signal (for fuel cut) | CAN | |
| No. 2 Skid Control ECU (Brake Actuator Assembly)*2 Skid Control ECU (Brake Actuator Assembly)*3 |
Collision detection signal (for secondary collision brake) | ||
| DCM (Telematics Transceiver)*1 | VDAS transmission information | ||
| Main Body ECU (Multiplex Network Body ECU) | Interior light illumination request signal | ||
| Hybrid Vehicle Control ECU*2 | Collision detection signal (for hybrid high voltage release) | ||
| Combination Meter Assembly |
|
||
| Millimeter Wave Radar Sensor Assembly | Airbag Sensor Assembly | Front PCS information |
*1: w/ Manual (SOS) Switch
*2: for HV Model
*3: for Gasoline Model
