SRS Warning Light does not Come ON [10/2022 - 11/2023]: Wiring Diagram

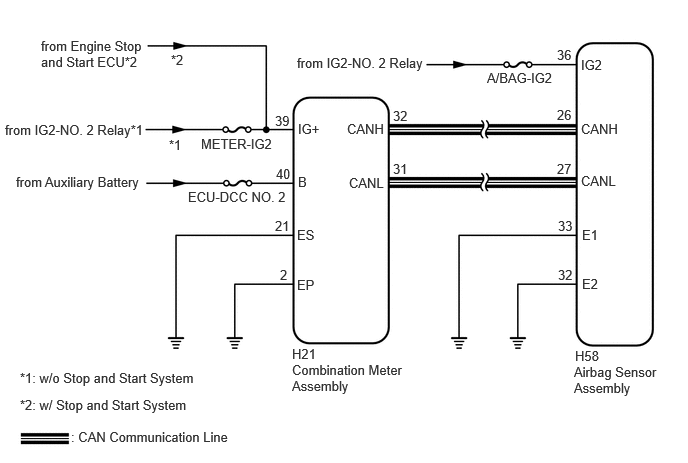

except 12.3 Inch Display

GTY896704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

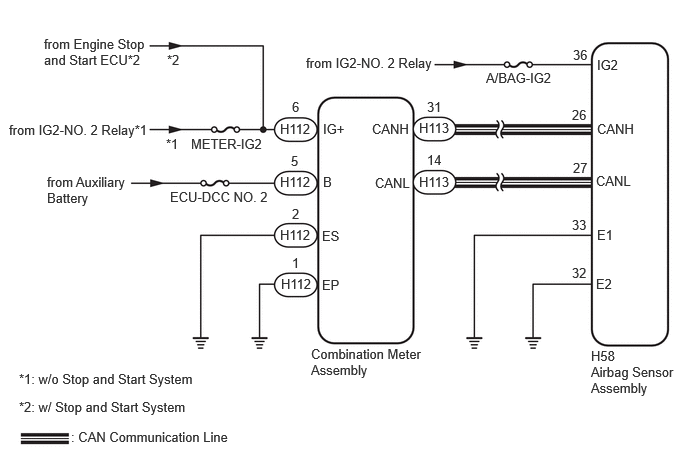

for 12.3 Inch Display

GTY1114697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
