Components [10/2021 - ]

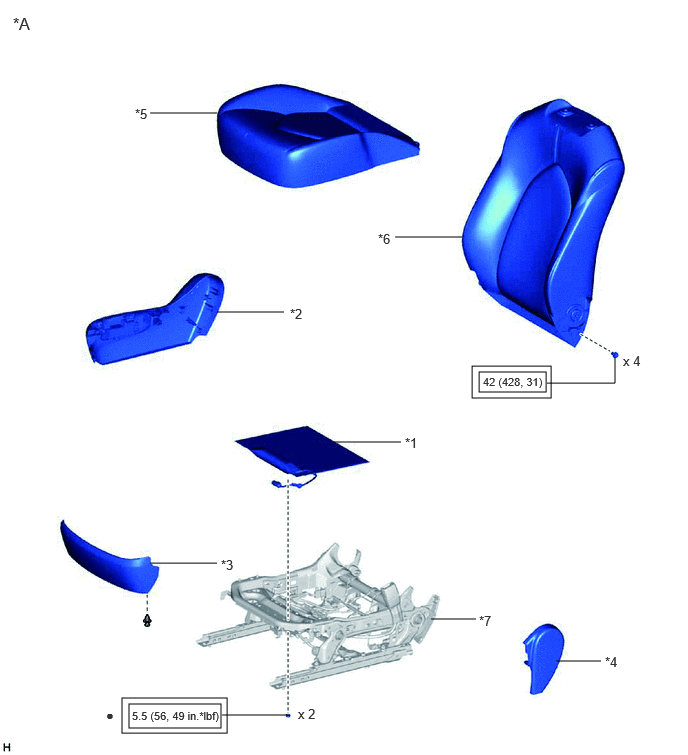

Fig 1: SRS Seat Cushion Airbag Assembly Replacement Components With Torque Specifications [10/2021 - ] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Power Seat | - | - |
| *1 | FRONT SEAT CUSHION AIRBAG ASSEMBLY RH | *2 | FRONT SEAT CUSHION SHIELD RH |
| *3 | FRONT SEAT FRONT CUSHION SHIELD RH | *4 | FRONT SEAT INNER CUSHION SHIELD RH |
| *5 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD RH | *6 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY RH |
| *7 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |

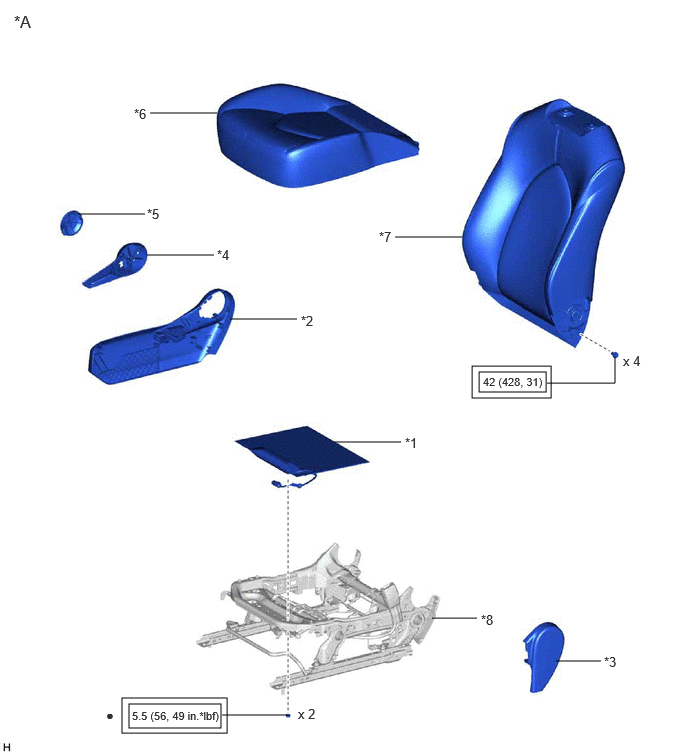

Fig 2: SRS Seat Cushion Airbag Assembly Replacement Components With Torque Specifications [10/2021 - ] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Manual Seat | - | - |
| *1 | FRONT SEAT CUSHION AIRBAG ASSEMBLY RH | *2 | FRONT SEAT CUSHION SHIELD RH |
| *3 | FRONT SEAT INNER CUSHION SHIELD RH | *4 | RECLINING ADJUSTER RELEASE HANDLE RH |
| *5 | RECLINING HINGE COVER RH | *6 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD RH |
| *7 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY RH | *8 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
