Components [12/2019 - ]

Fig 1: Center Airbag Sensor Assembly Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for HV Model	-	-
*1	BATTERY SERVICE HOLE COVER	-	-

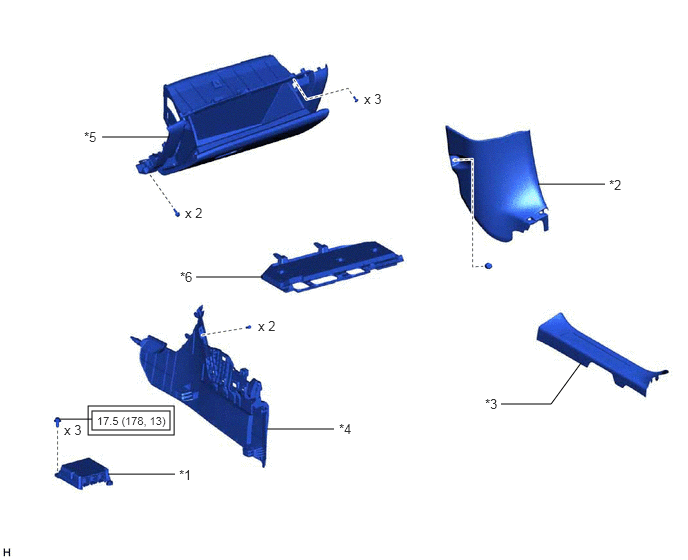

Fig 2: Center Airbag Sensor Assembly Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	AIRBAG SENSOR ASSEMBLY	*2	COWL SIDE TRIM SUB-ASSEMBLY RH
*3	FRONT DOOR SCUFF PLATE RH	*4	FRONT NO. 2 CONSOLE BOX INSERT
*5	LOWER INSTRUMENT PANEL SUB-ASSEMBLY	*6	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-
