Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for HV Model | - | - |
| *1 | BATTERY SERVICE HOLE COVER | - | - |

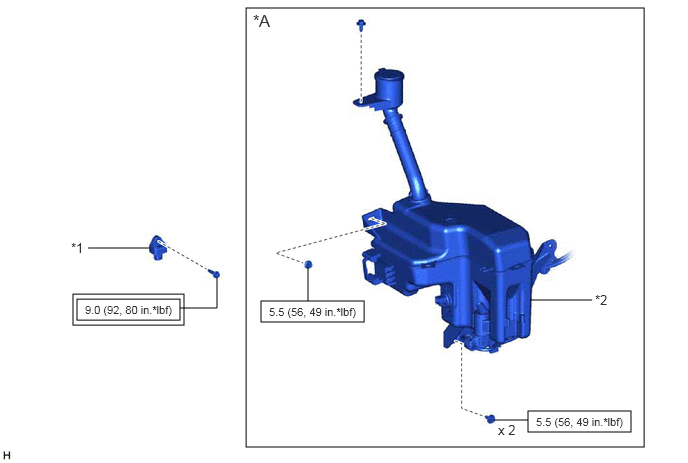

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for LH Side | - | - |
| *1 | FRONT AIRBAG SENSOR | *2 | WINDSHIELD WASHER JAR ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
