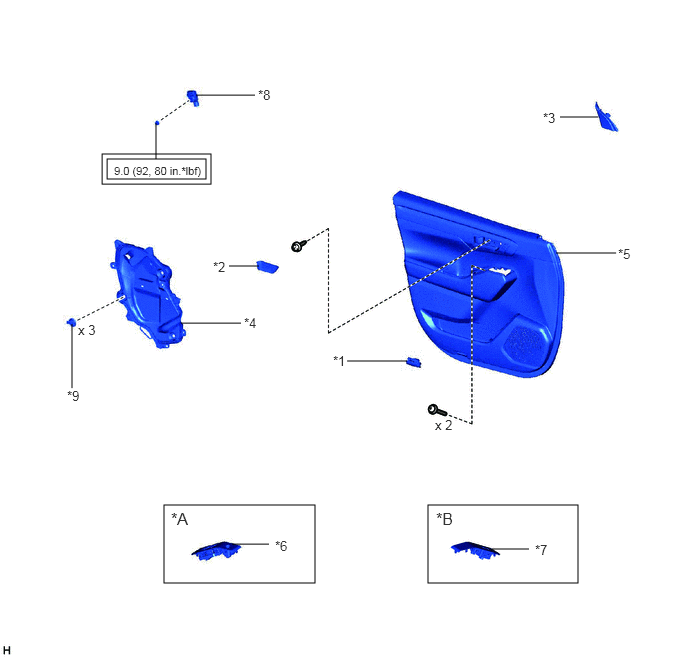

| *A |
for Driver Side |
*B |
for Front Passenger Side |
| *1 |
COURTESY LIGHT ASSEMBLY |
*2 |
FRONT DOOR INSIDE HANDLE BEZEL |
| *3 |
FRONT DOOR LOWER FRAME BRACKET GARNISH |
*4 |
FRONT DOOR SERVICE HOLE COVER |
| *5 |
FRONT DOOR TRIM BOARD SUB-ASSEMBLY |
*6 |
MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
| *7 |
POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
*8 |
SIDE AIRBAG SENSOR ASSEMBLY |
| *9 |
FRONT DOOR WEATHERSTRIP CLIP |
- |
- |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
- |
- |
