Components [12/2019 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for HV Model | - | - |
| *1 | BATTERY SERVICE HOLE COVER | - | - |

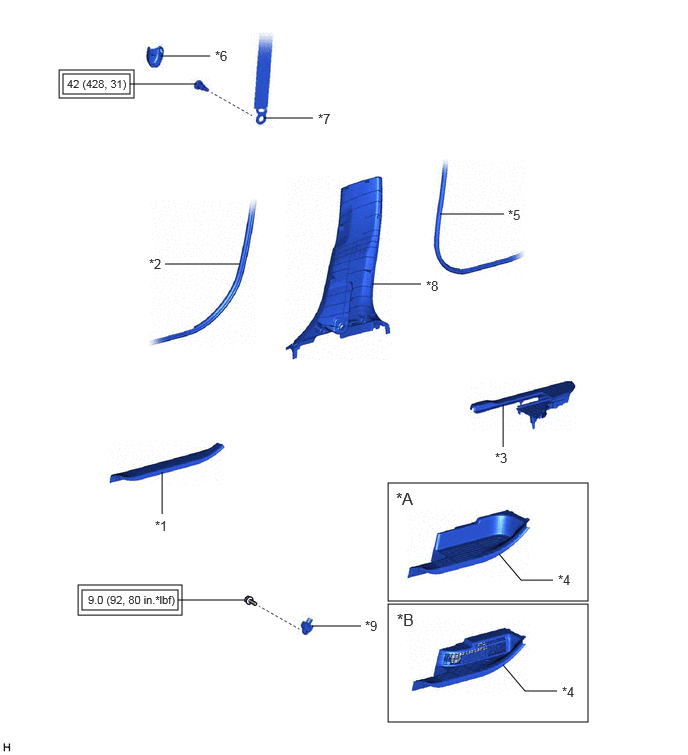

Fig 2: Side Airbag Sensor (For Center Pillar) Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Gasoline Model | *B | for HV Model |
| *1 | FRONT DOOR SCUFF PLATE | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP |
| *3 | REAR OUTER SEAT TRACK BRACKET COVER | *4 | REAR DOOR SCUFF PLATE |
| *5 | REAR DOOR OPENING TRIM WEATHERSTRIP | *6 | LAP BELT OUTER ANCHOR COVER |
| *7 | FRONT SEAT OUTER BELT ASSEMBLY | *8 | LOWER CENTER PILLAR GARNISH |
| *9 | SIDE NO. 2 AIRBAG SENSOR | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
