Airbag System - Service Information (2 Of 2)
>>
Rear Airbag Sensor
>>
Components [12/2019 - ]
Components [12/2019 - ]

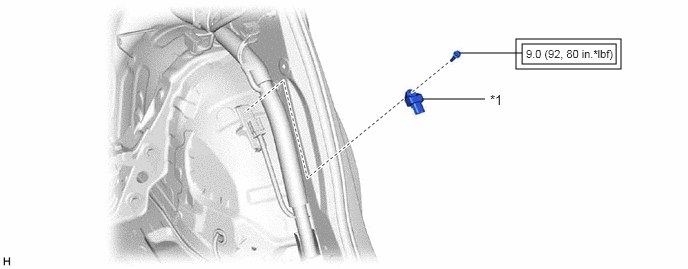

Fig 1: Rear Airbag Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
REAR AIRBAG SENSOR
-
-
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)
-
-
