Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 8 Inch Display)

    Refer to REMOVAL [12/2019 - 10/2022]

  2. REMOVE MULTI-DISPLAY WITH AIR CONDITIONING CONTROL (for 12.3 Inch Display)

    Refer to REMOVAL [12/2019 - 10/2022]

  3. REMOVE PASSENGER AIRBAG ON/OFF INDICATOR (TELLTALE LIGHT ASSEMBLY) (for 8 Inch Display)
    1. Disengage the 3 claws to remove the passenger airbag ON/OFF indicator (telltale light assembly).
      GTY941513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

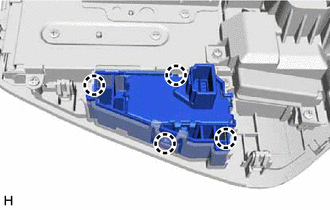

  4. REMOVE PASSENGER AIRBAG ON/OFF INDICATOR (TELLTALE LIGHT ASSEMBLY) (for 12.3 Inch Display)
    1. Disengage the 4 claws to remove the passenger airbag ON/OFF indicator (telltale light assembly).
      GTY941512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
