Removal [10/2022 - ]: Procedure

  1. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 8 Inch Display)

    Refer to REMOVAL [10/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

  2. REMOVE RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL (for 12.3 Inch Display)

    Refer to REMOVAL [10/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

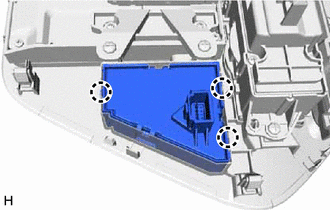

  3. REMOVE PASSENGER AIRBAG ON/OFF INDICATOR (TELLTALE LIGHT ASSEMBLY) (for 8 Inch Display)
    1. Disengage the 3 claws to remove the passenger airbag ON/OFF indicator (telltale light assembly).
      GTY941513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

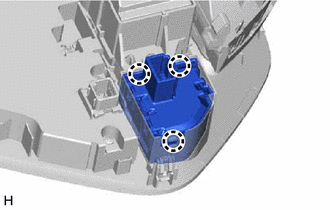

  4. REMOVE PASSENGER AIRBAG ON/OFF INDICATOR (TELLTALE LIGHT ASSEMBLY) (for 12.3 Inch Display)
    1. Disengage the 3 claws to remove the passenger airbag ON/OFF indicator (telltale light assembly).
      GTY1111345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
