Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL TELEPHONE MICROPHONE ASSEMBLY
    1. Engage the 2 claws to install the telephone microphone assembly to the No. 1 microphone case as shown in the illustration.
      GTY930198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL TELEPHONE MICROPHONE ASSEMBLY WITH MICROPHONE CASE

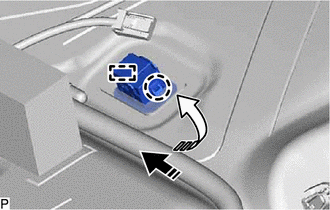

    1. Engage the guide and claw to install the telephone microphone assembly with microphone case as shown in the illustration.
      GTY931396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    2. Connect the connector.
  3. INSTALL ROOF HEADLINING ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022]
