Removal [12/2019 - ]: Procedure

  1. REMOVE REAR NO. 1 SEAT ASSEMBLY

    Refer to REMOVAL [12/2019 - ]

  2. REMOVE CENTER ARMREST HINGE COVER

    Refer to PROCEDURE - Step 1

  3. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE REAR SEAT ARMREST HINGE SHIM

    Refer to PROCEDURE - Step 3

  5. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH

    Refer to PROCEDURE - Step 6

  6. REMOVE REAR SEAT CUSHION UNDER COVER RH

    Refer to PROCEDURE - Step 7

  7. REMOVE SEAT ADJUSTER COVER CAP RH

    Refer to PROCEDURE - Step 5

  8. REMOVE REAR SEAT NO. 1 LOCK CONTROL LEVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 9

  9. REMOVE REAR SEAT NO. 2 LOCK CONTROL LEVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 10

  10. REMOVE REAR SEATBACK COVER RH

    Refer to PROCEDURE - Step 22

  11. REMOVE REAR SEAT CUSHION MOULDING RH

    Refer to PROCEDURE - Step 11

  12. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

    Refer to PROCEDURE - Step 12

  13. REMOVE REAR SEAT HINGE COVER

    Refer to PROCEDURE - Step 16

  14. REMOVE REAR SEAT CUSHION REAR MOULDING RH

    Refer to PROCEDURE - Step 18

  15. REMOVE REAR SEATBACK LOCK STRIKER COVER

    Refer to PROCEDURE - Step 20

  16. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 21

  17. DISCONNECT REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY

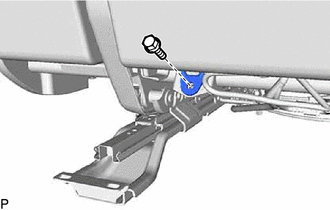

    1. Remove the bolt to disconnect the anchor of the rear No. 1 seat center lap type belt assembly.
      GTY898670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE REAR SEAT SHOULDER BELT COVER

    Refer to PROCEDURE - Step 24

  19. REMOVE SEAT BELT ANCHOR COVER CAP

    Refer to PROCEDURE - Step 25

  20. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 26

  21. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

    Refer to PROCEDURE - Step 27

  22. REMOVE REAR NO. 1 SEAT CENTER LAP TYPE BELT ASSEMBLY

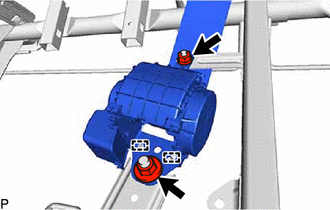

    1. Remove the 2 nuts.
      GTY939506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the rear No. 1 seat center lap type belt assembly.
