Components [12/2019 - 10/2022]

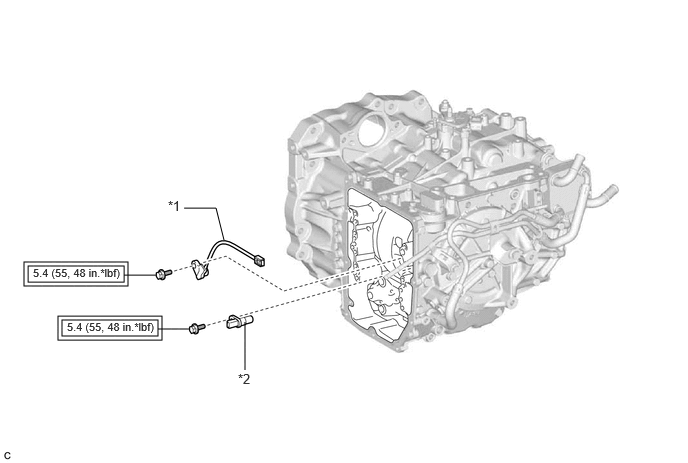

Fig 1: Speed Sensor Replacement Components With Torque Specifications [12/2019 - 10/2022]
GTY866623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION REVOLUTION SENSOR (NC) *2 TRANSMISSION REVOLUTION SENSOR (NT)
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) - -
