Removal [12/2019 - 10/2022]: Procedure

REMOVE FRONT ENGINE MOUNTING INSULATOR
Refer to REMOVAL [12/2019 - 10/2022]
REMOVE FRONT FENDER APRON SEAL LH
Refer to PROCEDURE - Step 15 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 15 [09/2020 - 10/2022]

DRAIN AUTOMATIC TRANSAXLE FLUID

Remove the refill plug and gasket from the automatic transaxle case sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle housing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the transaxle housing and drain the automatic transaxle fluid.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 1 Transmission Oil Filler Tube

Using a 6 mm hexagon socket wrench, install the No. 1 transmission oil filler tube to the transaxle housing.
Torque: 1.7 N.m (17 kgf/cm, 15 in.lbf)
Using a 10 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the transaxle housing.
HINT:

Reuse the old gasket as the overflow plug will be removed again to adjust the automatic transaxle fluid level.
Temporarily install the gasket and refill plug to avoid automatic transaxle fluid spillage.
HINT:

Reuse the old gasket as the refill plug will be removed again to adjust the automatic transaxle fluid level.

DISCONNECT OUTLET NO. 1 OIL COOLER HOSE

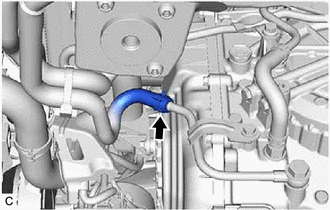

Slide the clip and disconnect the outlet No. 1 oil cooler hose from the oil cooler union sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE OIL COOLER UNION SUB-ASSEMBLY

Remove the bolt, oil cooler union bolt, 2 gaskets and oil cooler union sub-assembly from the automatic transaxle case sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Oil Cooler Union Bolt
*2	Gasket

REMOVE TRANSMISSION CASE SIDE COVER

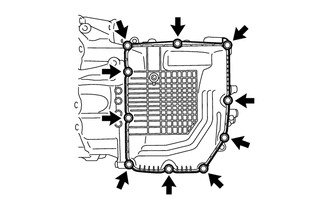

Remove the 10 bolts and transmission case side cover from the automatic transaxle case sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE TRANSMISSION WIRE

Disengage the clamp to disconnect the transmission wire from the solenoid lock plate.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Connector (A)
*b	Connector (B)

Disconnect the 9 solenoid valve connectors.
HINT:
- Using a screwdriver, disconnect the solenoid valve connector (A) using the procedure shown in the illustration.
- Using a screwdriver, disconnect the solenoid valve connector (B) using the procedure shown in the illustration.

Disengage the wire harness clamp to disconnect the transmission wire (oil pump with solenoid assembly).

Disconnect the transmission wire connector.

Disengage the clamp to disconnect the transmission wire (oil pump with solenoid assembly) from the solenoid lock plate.

Remove the bolt and temperature sensor clamp and separate the temperature sensor from the transmission valve body assembly.

Disconnect the transmission revolution sensor (NT) connector and transmission revolution sensor (NC) connector.

Remove the bolt and transmission wire from the automatic transmission case sub-assembly.
