Reassembly [12/2019 - 10/2022]: Procedure

  1. INSTALL SOLENOID (SL) VALVE
    1. Coat the solenoid (SL) valve with Toyota Genuine ATF WS.
    2. Install the solenoid (SL) valve to the transmission valve body assembly with the bolt.

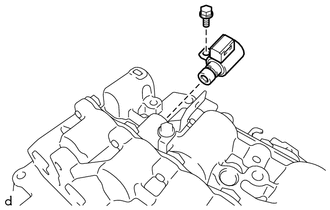

      GTY694239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

  2. INSTALL SOLENOID (SLT) VALVE
    1. Coat the solenoid (SLT) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

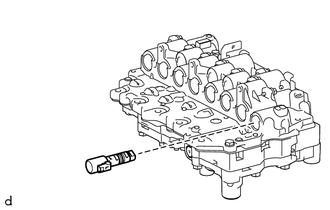

      GTY732603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL SOLENOID (SL2) VALVE
    1. Coat the solenoid (SL2) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

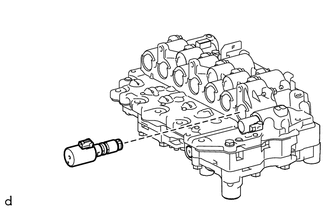

      GTY694246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL SOLENOID (SL1) VALVE
    1. Coat the solenoid (SL1) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

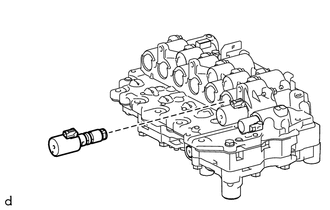

      GTY694245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL SOLENOID (SL3) VALVE
    1. Coat the solenoid (SL3) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

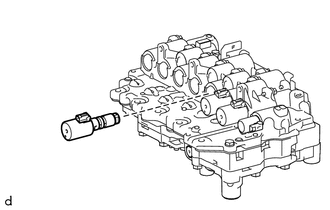

      GTY694244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL SOLENOID (SL4) VALVE
    1. Coat the solenoid (SL4) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

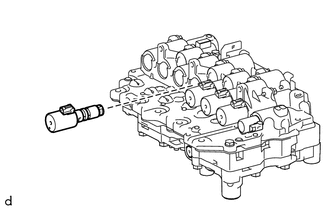

      GTY694243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL SOLENOID (SL6) VALVE
    1. Coat the solenoid (SL6) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

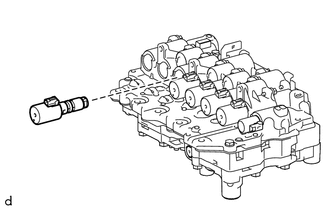

      GTY732604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL SOLENOID (SL5) VALVE
    1. Coat the solenoid (SL5) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

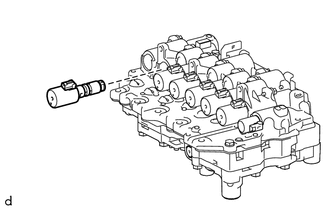

      GTY694197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL SOLENOID (SLU) VALVE
    1. Coat the solenoid (SLU) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

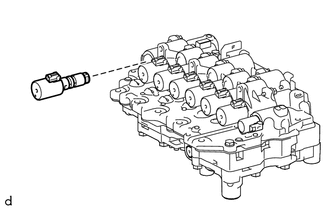

      GTY694196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL SOLENOID LOCK PLATE
    1. Install the solenoid lock plate to the transmission valve body assembly with the 3 bolts.

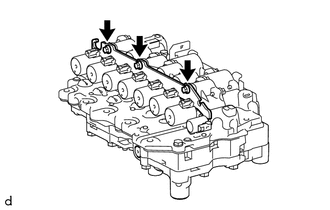

      GTY694195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

  11. INSTALL WIRE HARNESS CLAMP
    1. Install the wire harness clamp to the transmission valve body assembly with the bolt.
      GTY737839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

  12. INSTALL MANUAL VALVE
    1. Coat the manual valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

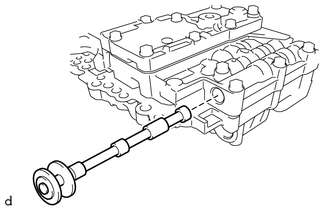

      GTY694194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
