Reassembly [12/2019 - 10/2022]: Procedure

  1. INSTALL LOWER POSITION INDICATOR HOUSING
    1. Engage the 4 claws and 2 guides to install the lower position indicator housing to the shift lock control unit assembly.

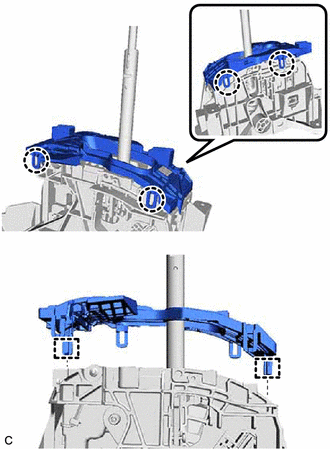

      GTY917654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the lower position indicator housing.

  2. INSTALL SHIFT POSITION INDICATOR
    1. Engage the claw to install the shift position indicator to the shifting hole bezel.

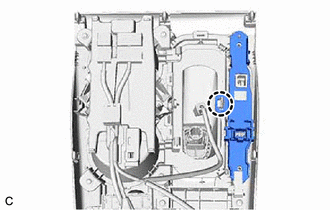

      GTY917655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.

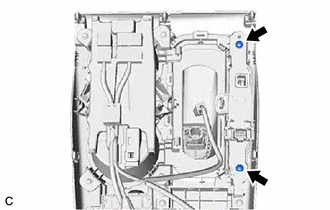

      GTY917656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the shift position indicator connector.

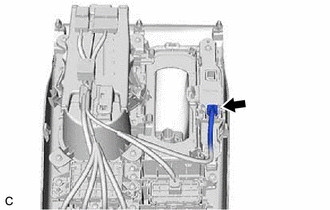

      GTY943708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
