Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

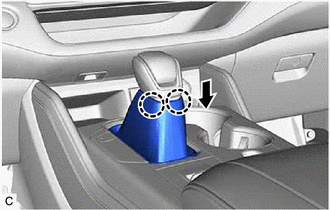

    1. Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.
      GTY917678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

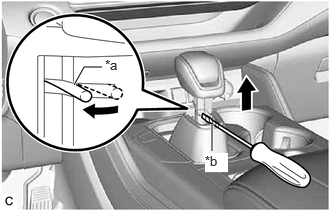

    2. Using a screwdriver with its tip wrapped with protective tape, expand the left side of the clip and remove the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.
      GTY857627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clip
      *b Protective Tape
      NOTE:

      Be careful not to damage the shift lever knob sub-assembly.
