Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    See step  1

  2. REMOVE CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 2 CONSOLE BOX CUSHION

    Refer to PROCEDURE - Step 1

  4. REMOVE FRONT CONSOLE BOX COVER

    Refer to PROCEDURE - Step 3

  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  6. REMOVE SNOW SWITCH (PATTERN SELECT SWITCH)

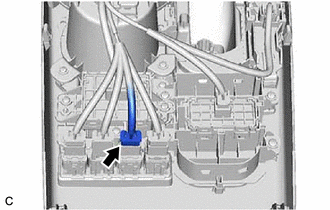

    1. Disconnect the snow switch (pattern select switch) connector.
      GTY917681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

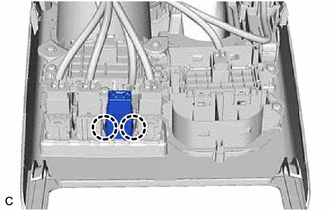

    2. Disengage the 2 claws and remove the snow switch (pattern select switch) from the console panel sub-assembly.
      GTY917671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 1 PATTERN SELECT SWITCH ASSEMBLY

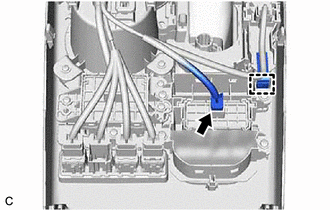

    1. Disconnect the No. 1 pattern select switch assembly connector.
      GTY917637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

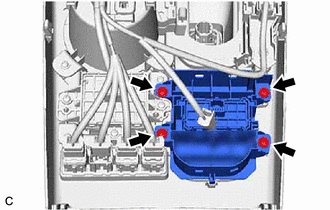

    2. Disengage the clamp.
    3. Remove the 4 screws and No. 1 pattern select switch assembly from the console panel sub-assembly.
      GTY917636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
