Automatic Transmission System (UA80F) - Service Information (1 Of 2)
>>
DIFFERENTIAL OIL SEAL (for RH Side)
>>
Components [12/2019 - 10/2022]
Components [12/2019 - 10/2022]

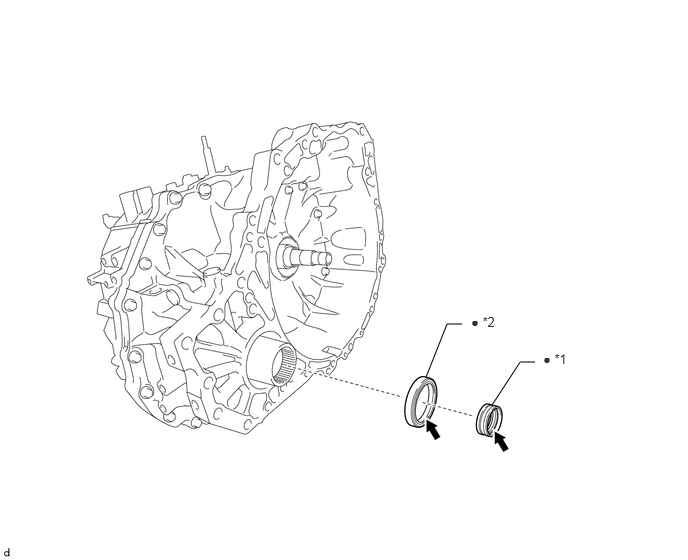

Fig 1: Differential Oil Seal (For RH Side) Replacement Components [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
FRONT DRIVE SHAFT OIL SEAL RH
*2
TRANSAXLE CASE OIL SEAL
•
Non-reusable part
MP grease
