Replacement [11/2023 - ]: Procedure

Refer to REMOVAL [11/2023 - ]

See step  2

See step  3

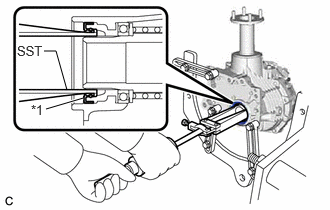

1. Using SST, remove the transfer case oil seal from the transfer assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transfer Case Oil Seal

   • SST: 09308-00010
   NOTE:

   • Do not scratch the press-fitting surface of the transfer case oil seal.
   • Wear or damage to the front drive shaft oil seal RH on the transmission side will cause transfer oil leakage.

     If it is worn or damaged, replace the front drive shaft oil seal RH.

     Refer to REPLACEMENT [11/2023 - ]

1. Coat the lip of a new transfer case oil seal with MP grease.

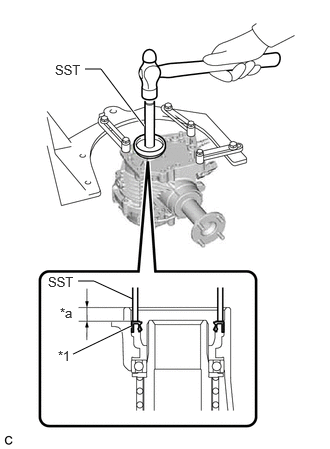

2. Using SST and a hammer, tap in the transfer case oil seal to the transfer assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transfer Case Oil Seal
   *a	Depth

   • SST: 09608-10010
   • SST: 09950-70010
     1. 09951-07100

   Standard Depth

   9.5 to 10.5 mm (0.374 to 0.413 in.)

   NOTE:

   • Tap the transfer case oil seal uniformly so that the transfer case oil seal is straight.
   • Do not tap the transfer case oil seal in too far.

See step  13

See step  14

Refer to INSTALLATION [10/2022 - ]
