Components [12/2019 - 10/2022]

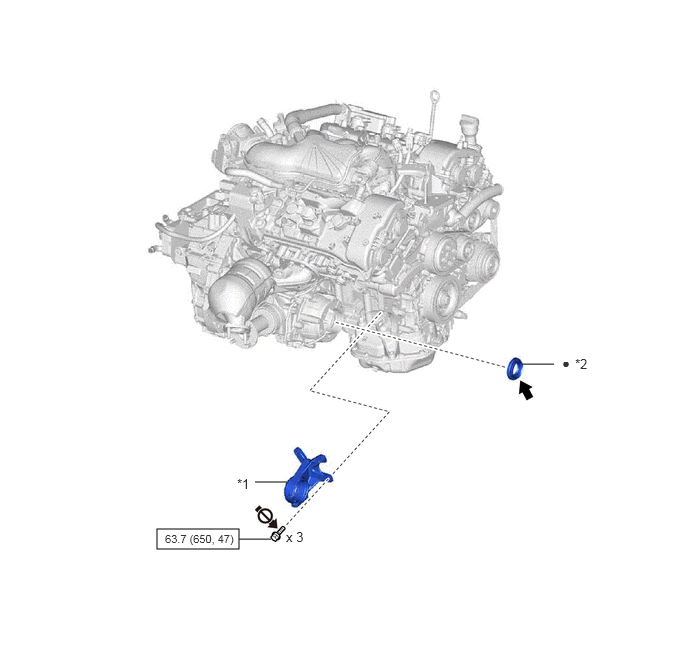

Fig 1: Transfer Case Front Oil Seal (For RH Side) Replacement Components With Torque Specifications [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | TRANSFER CASE OIL SEAL RH |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
MP grease | |
Do not apply lubricants to the threaded parts |
