Components [10/2022 - ]

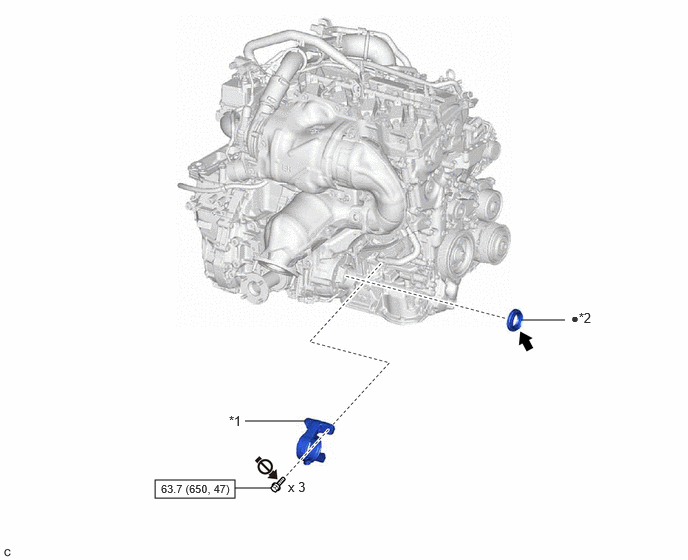

Fig 1: Transfer Case Front Oil Seal (For RH Side) Replacement Components With Torque Specifications [10/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | TRANSFER CASE OIL SEAL RH |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
MP grease | |
Do not apply lubricants to the threaded parts |
