Components [12/2019 - ]

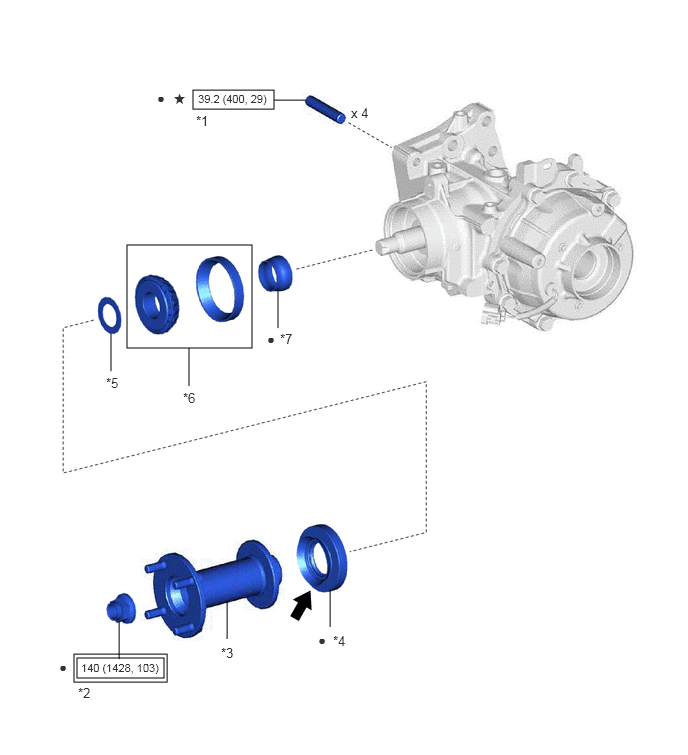

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSFER AND TRANSAXLE SETTING STUD BOLT | *2 | OUTPUT SHAFT COMPANION FLANGE NUT |
| *3 | TRANSFER OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY | *4 | TRANSFER CASE OIL SEAL |
| *5 | SPACER | *6 | REAR DRIVE PINION BEARING |
| *7 | TRANSFER PINION BEARING SPACER | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | |
MP grease |
| * | Precoated part | - | - |
