Replacement [10/2022 - 11/2023]: Procedure

  1. REMOVE TRANSFER ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

  2. REMOVE TRANSFER AND TRANSAXLE SETTING STUD BOLT

    See step  2

  3. SECURE TRANSFER ASSEMBLY

    See step  3

  4. INSPECT TOTAL PRELOAD

    See step  12

  5. REMOVE OUTPUT SHAFT COMPANION FLANGE NUT

    See step  13

  6. REMOVE TRANSFER OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY

    See step  14

  7. REMOVE TRANSFER CASE OIL SEAL
    1. Using SST, remove the transfer case oil seal from the transfer assembly.

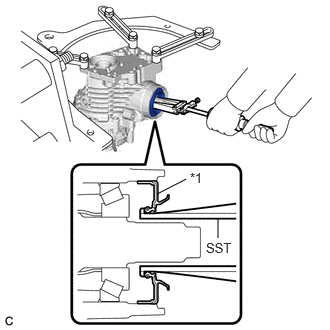

      GTY890419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transfer Case Oil Seal
      • SST: 09308-00010
      NOTE:

      Do not scratch the press-fitting surface of the transfer case oil seal.

    2. Remove the spacer from the transfer assembly.
      GTY848596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

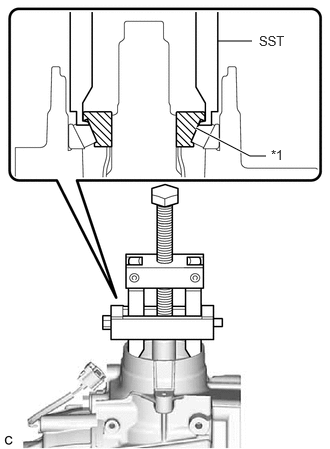

    3. Using SST, remove the rear drive pinion bearing (inner race) from the transfer assembly.
      GTY903194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Drive Pinion Bearing (Inner Race)
      • SST: 09556-40010
    4. Remove the transfer pinion bearing spacer from the transfer assembly.
      GTY848608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using SST, remove the rear drive pinion bearing (outer race) from the transfer assembly.
      • SST: 09950-40011
        1. 09951-04010
        2. 09952-04010
        3. 09953-04010
        4. 09954-04010
        5. 09957-04010
      • SST: 09506-42030
      • SST: 09955-04160

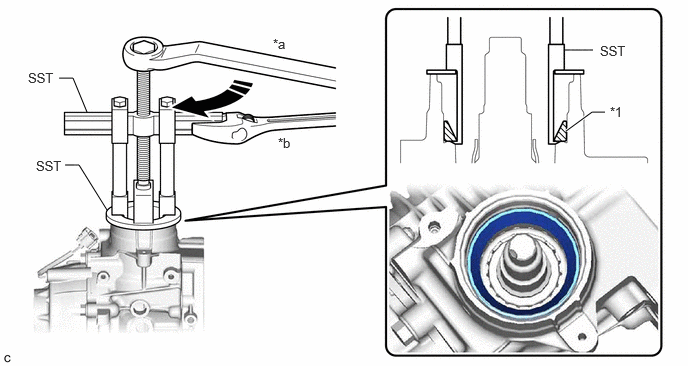

      GTY904445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Drive Pinion Bearing (Outer Race) - -
      *a Turn *b Hold
  8. INSTALL TRANSFER CASE OIL SEAL
    1. Using SST and a press, install the rear drive pinion bearing (outer race) to the transfer assembly.

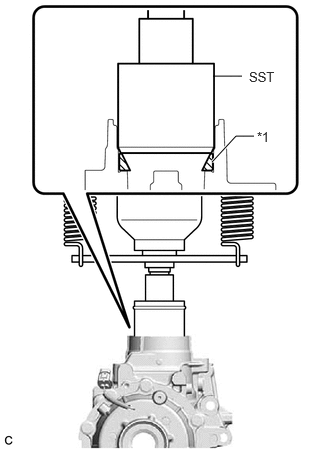

      GTY910299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Drive Pinion Bearing (Outer Race)
      • SST: 09506-42020
    2. Install a new transfer pinion bearing spacer to the transfer assembly.
    3. Temporarily install the transfer output shaft companion flange sub-assembly and rear drive pinion bearing (inner race) to the transfer assembly.
    4. Using SST, install the rear drive pinion bearing (inner race).

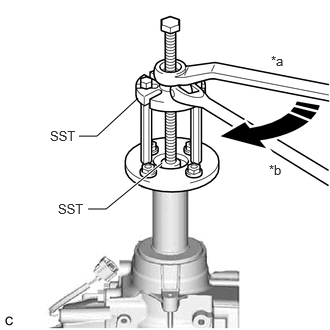

      GTY915845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
      • SST: 09950-30012
        1. 09951-03010
        2. 09953-03010
        3. 09954-03010
        4. 09955-03030
      • SST: 09956-03090
    5. Using SST, remove the transfer output shaft companion flange sub-assembly from the transfer assembly.
      GTY879104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
      • SST: 09950-30012
        1. 09951-03010
        2. 09953-03010
        3. 09954-03010
        4. 09955-03030
      • SST: 09956-03090
    6. install the spacer to the transfer assembly.
    7. Coat the lip of a new transfer case oil seal with MP grease.
    8. Using SST and a hammer, tap in the transfer case oil seal to the transfer assembly as shown in the illustration.

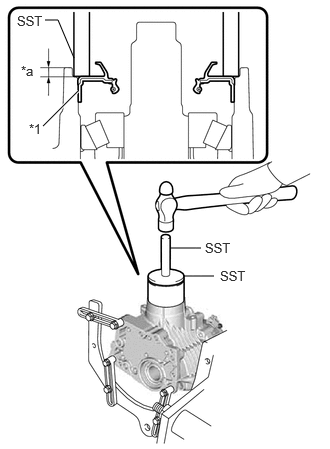

      GTY851335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transfer Case Oil Seal
      *a Depth
      • SST: 09554-42010
      • SST: 09950-60021
        1. 09951-01030
      • SST: 09950-70010
        1. 09951-07100

      Standard Depth

      3.9 to 4.9 mm (0.154 to 0.193 in.)

      NOTE:

      Do not damage the transfer case oil seal press-fit surface.

      HINT:

      Press using the A surface.

      GTY849607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL TRANSFER OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY

    See step  2

  10. INSPECT TOTAL PRELOAD

    See step  3

  11. INSTALL OUTPUT SHAFT COMPANION FLANGE NUT

    See step  4

  12. REMOVE TRANSFER ASSEMBLY

    See step  13

  13. INSTALL TRANSFER AND TRANSAXLE SETTING STUD BOLT

    See step  14

  14. INSTALL TRANSFER ASSEMBLY

    Refer to INSTALLATION [10/2022 - ]
