Components [12/2019 - 10/2022]

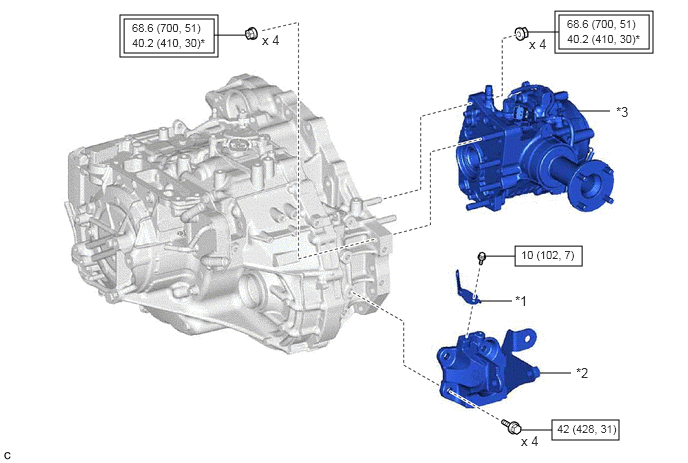

Fig 1: Transfer Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | WIRE HARNESS CLAMP BRACKET | *2 | REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY |
| *3 | TRANSFER ASSEMBLY | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with SST and a union nut wrench |

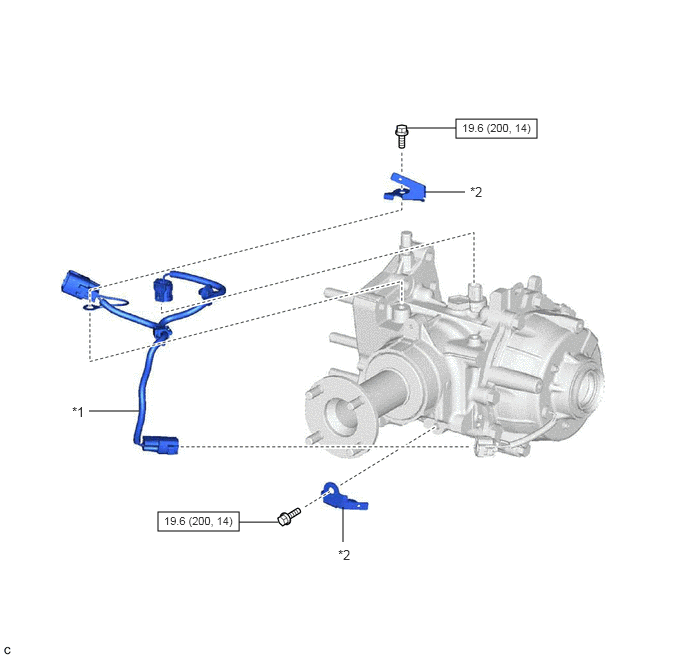

Fig 2: Transfer Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CLUTCH CONTROL SOLENOID WIRE | *2 | WIRING HARNESS CLAMP BRACKET |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

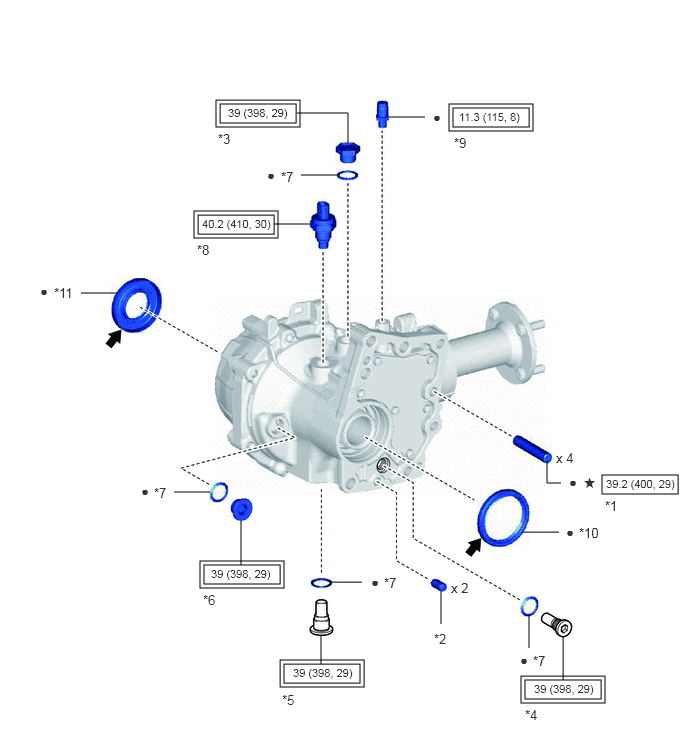

Fig 3: Transfer Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | TRANSFER AND TRANSAXLE SETTING STUD BOLT | *2 | TRANSFER CASE STRAIGHT PIN |
| *3 | NO. 1 TRANSFER CASE PLUG | *4 | NO. 2 TRANSFER CASE PLUG |
| *5 | TRANSFER DRAIN PLUG | *6 | TRANSFER FILLER PLUG |
| *7 | GASKET | *8 | NO. 1 4 WHEEL DRIVE POSITION SWITCH |
| *9 | TRANSFER CASE BREATHER PLUG | *10 | TRANSFER CASE OIL SEAL |
| *11 | TRANSFER CASE OIL SEAL RH | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |
| • | Non-reusable part | |
MP grease |
| * | Precoated part | - | - |

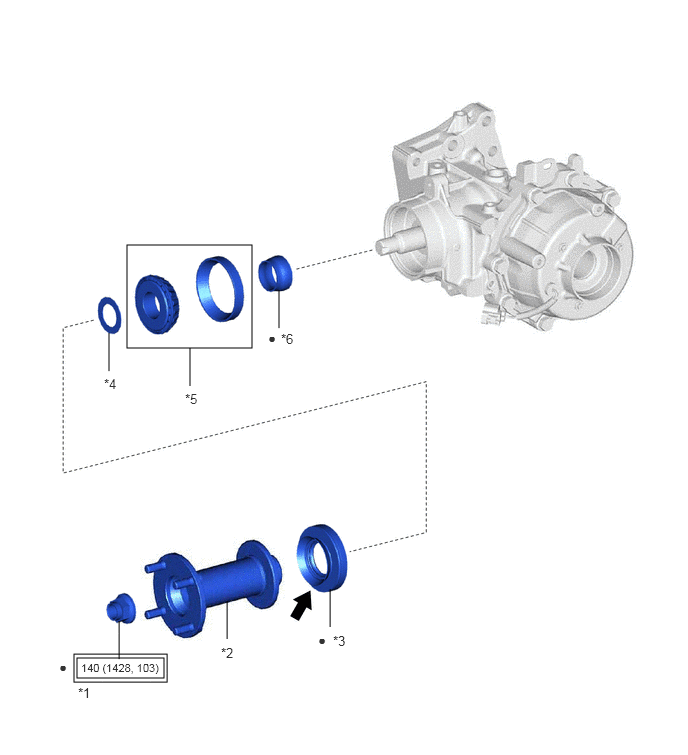

Fig 4: Transfer Assembly Replacement Components With Torque Specifications [12/2019 - 10/2022] (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OUTPUT SHAFT COMPANION FLANGE NUT | *2 | TRANSFER OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY |
| *3 | TRANSFER CASE OIL SEAL | *4 | SPACER |
| *5 | REAR DRIVE PINION BEARING | *6 | TRANSFER PINION BEARING SPACER |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
|
MP grease | - | - |
