Components [10/2022 - ]

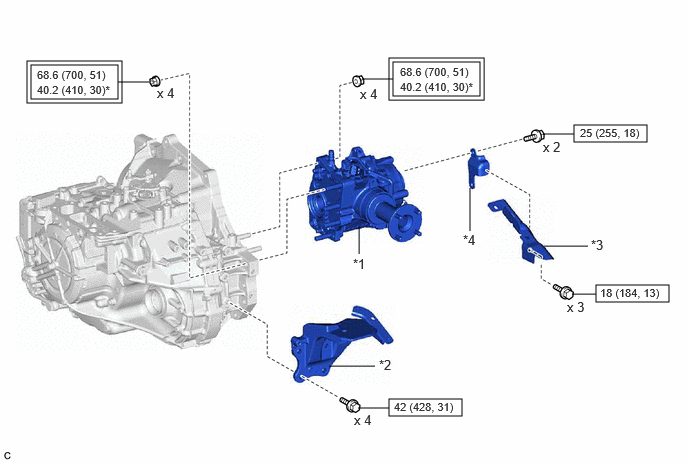

Fig 1: Transfer Assembly Replacement Components With Torque Specifications [10/2022 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	TRANSFER ASSEMBLY	*2	REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY
*3	PROPELLER SHAFT HEAT INSULATOR	*4	PROPELLER SHAFT HEAT INSULATOR BRACKET SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
*	For use with SST and a union nut wrench	-	-

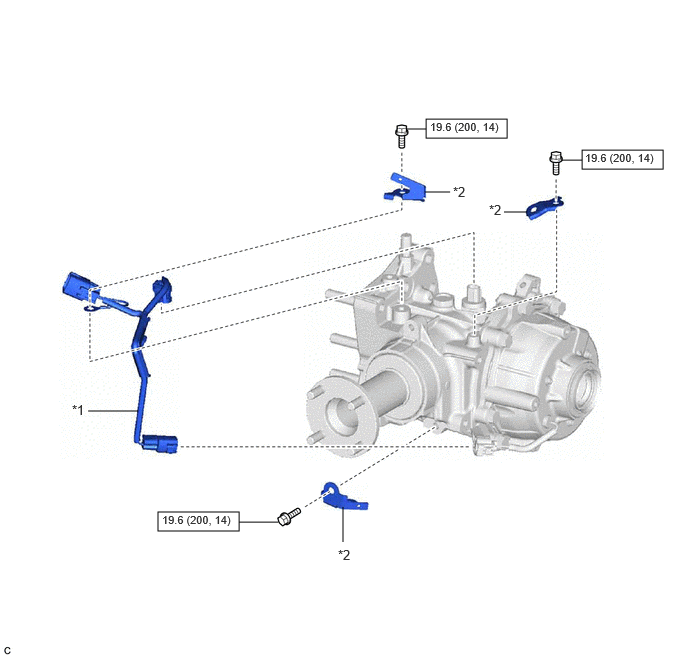

Fig 2: Transfer Assembly Replacement Components With Torque Specifications [10/2022 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CLUTCH CONTROL SOLENOID WIRE	*2	WIRING HARNESS CLAMP BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

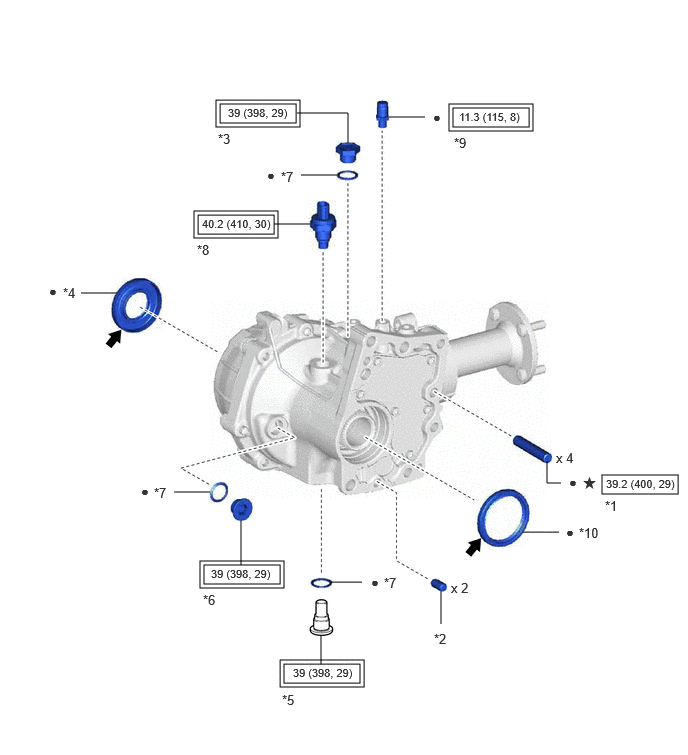

Fig 3: Transfer Assembly Replacement Components With Torque Specifications [10/2022 - ] (3 Of 4)

Callout	Description	Callout	Description
*1	TRANSFER AND TRANSAXLE SETTING STUD BOLT	*2	TRANSFER CASE STRAIGHT PIN
*3	NO. 1 TRANSFER CASE PLUG	*4	TRANSFER CASE OIL SEAL RH
*5	TRANSFER DRAIN PLUG	*6	TRANSFER FILLER PLUG
*7	GASKET	*8	NO. 1 4 WHEEL DRIVE POSITION SWITCH
*9	TRANSFER CASE BREATHER PLUG	*10	TRANSFER CASE OIL SEAL
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part		MP grease
*	Precoated part	-	-

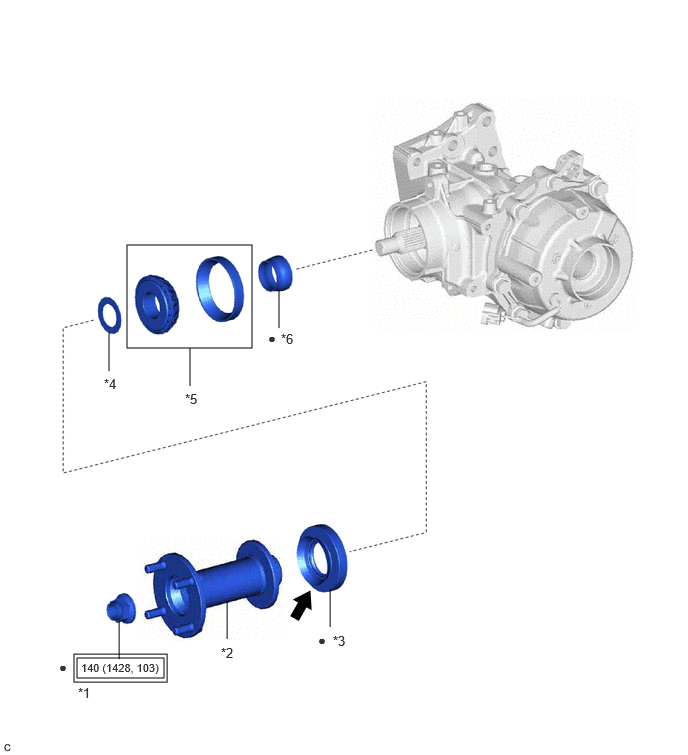

Fig 4: Transfer Assembly Replacement Components With Torque Specifications [10/2022 - ] (4 Of 4)

Callout	Description	Callout	Description
*1	OUTPUT SHAFT COMPANION FLANGE NUT	*2	TRANSFER OUTPUT SHAFT COMPANION FLANGE SUB-ASSEMBLY
*3	TRANSFER CASE OIL SEAL	*4	SPACER
*5	REAR DRIVE PINION BEARING	*6	TRANSFER PINION BEARING SPACER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	MP grease	-	-
