Removal [12/2019 - ]: Procedure

  1. REMOVE MULTI-TERRAIN SELECT SWITCH (NO. 1 PATTERN SELECT SWITCH ASSEMBLY) (for Dial Switch Type)

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  2. REMOVE MULTI-TERRAIN SELECT SWITCH (NO. 1 PATTERN SELECT SWITCH ASSEMBLY) (for Push Switch Type)

    Refer to REMOVAL [12/2019 - 10/2022] , or refer to REMOVAL [10/2022 - ]

  3. REMOVE CRAWL CONTROL SWITCH ASSEMBLY (for Push Switch Type)

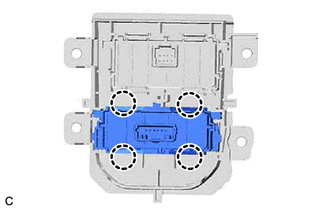

    1. Disengage the 4 claws and remove the crawl control switch assembly from the switch bezel.
      GTY924103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
