Components [12/2019 - ]

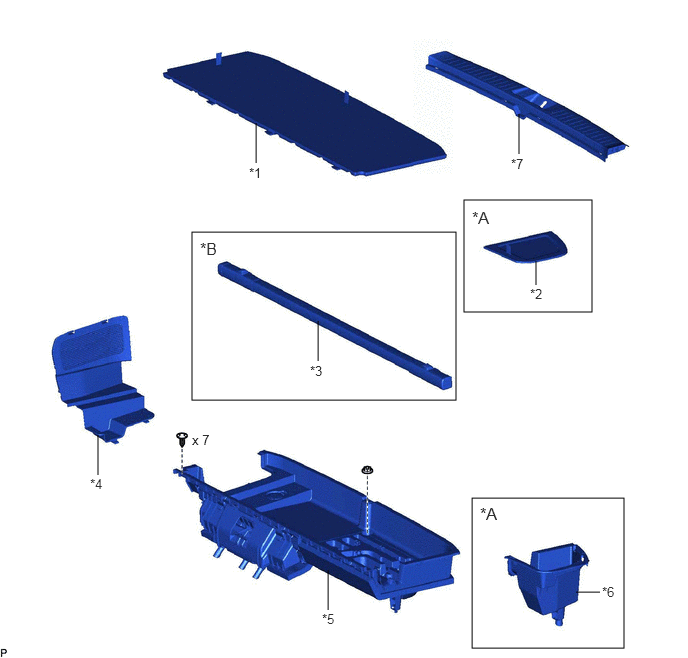

Fig 1: 4WD Control ECU Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/o Woofer	*B	w/ Tonneau Cover
*1	DECK BOARD ASSEMBLY	*2	NO. 3 DECK BOARD SUB-ASSEMBLY
*3	TONNEAU COVER ASSEMBLY	*4	BATTERY SERVICE HOLE COVER
*5	REAR DECK FLOOR BOX	*6	DECK SIDE TRIM BOX LH
*7	REAR FLOOR FINISH PLATE	-	-

Fig 2: 4WD Control ECU Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR OUTER SEAT TRACK BRACKET COVER LH	*2	REAR DOOR SCUFF PLATE LH
*3	REAR DOOR OPENING TRIM WEATHERSTRIP LH	-	-

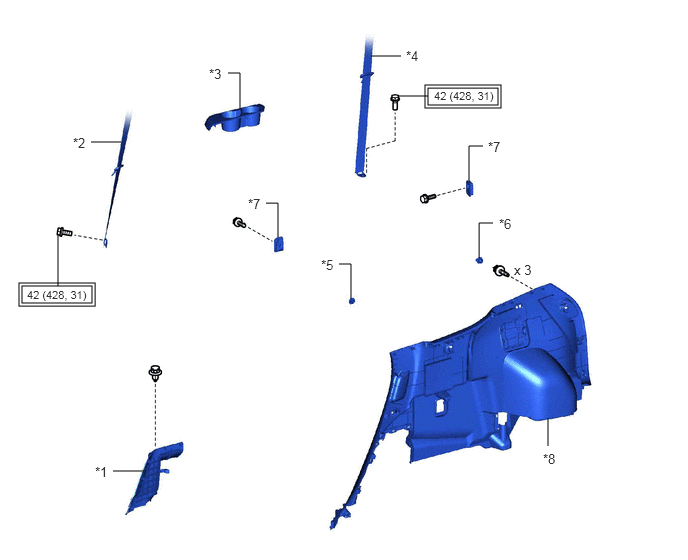

Fig 3: 4WD Control ECU Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT DECK SIDE TRIM COVER LH	*2	REAR SEAT OUTER BELT ASSEMBLY LH
*3	NO. 2 DECK SIDE TRIM COVER	*4	REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH
*5	DECK TRIM POCKET COVER	*6	NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
*7	ROPE HOOK	*8	DECK TRIM SIDE PANEL ASSEMBLY LH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

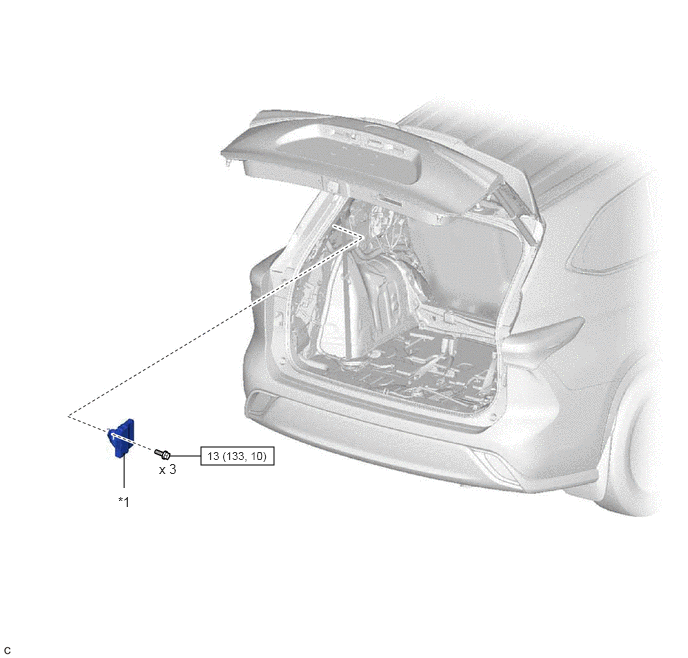

Fig 4: 4WD Control ECU Replacement Components With Torque Specifications (4 Of 4)

Callout	Description	Callout	Description
*1	4WD ECU ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
