Components [10/2022 - ]

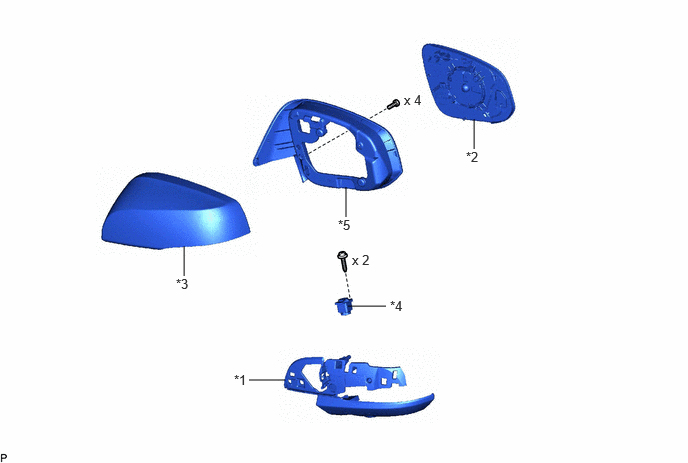

Fig 1: Television Camera (For Side) Replacement Components [10/2022 - ]
GTY1120206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 LOWER HOUSING *2 OUTER MIRROR
*3 OUTER MIRROR COVER *4 SIDE TELEVISION CAMERA ASSEMBLY
*5 VISOR HOUSING - -
