Components [12/2019 - 10/2022]

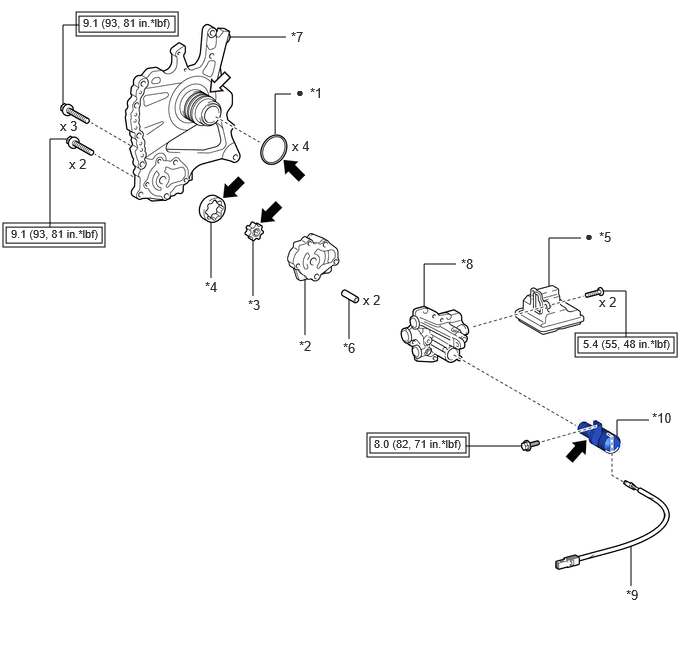

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CLUTCH DRUM OIL SEAL RING | *2 | FRONT OIL PUMP BODY |
| *3 | FRONT OIL PUMP DRIVE GEAR | *4 | FRONT OIL PUMP DRIVEN GEAR |
| *5 | OIL STRAINER ASSEMBLY | *6 | RING PIN |
| *7 | STATOR SHAFT ASSEMBLY | *8 | FRONT OIL PUMP COVER SUB-ASSEMBLY |
| *9 | TRANSMISSION WIRE (OIL PUMP WITH SOLENOID ASSEMBLY) | *10 | OIL PUMP WITH SOLENOID ASSEMBLY |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
|
Toyota Genuine ATF WS | |
MP grease |
