Disassembly [12/2019 - 10/2022]: Procedure

  1. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE)

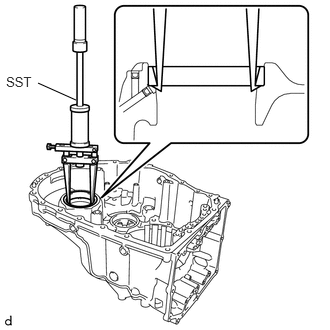

    1. Using SST, remove the front differential case rear tapered roller bearing (outer race) from the automatic transaxle case sub-assembly.
      GTY737642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-36010
      NOTE:

      Be careful not to damage the automatic transaxle case sub-assembly.

      HINT:

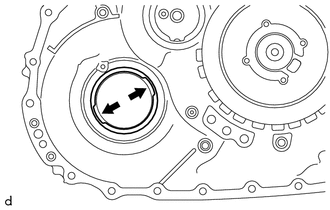

      Align the claw of SST with the indentation of the automatic transaxle case sub-assembly when removing the parts.

      GTY698866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE)

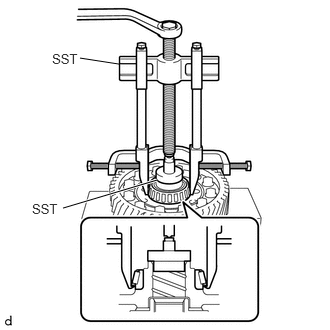

    1. Using SST, remove the front differential case rear tapered roller bearing (inner race) from the differential case assembly.
      GTY686936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-40011
        1. 09951-04010
        2. 09952-04010
        3. 09953-04030
        4. 09954-04020
        5. 09955-04011
        6. 09957-04010
        7. 09958-04011
      • SST: 09950-60011
        1. 09951-00340
        2. 09951-00440
        3. 09952-06010
      NOTE:

      Because SST is attached to the roller portion, there is a possibility that the roller portion could break and SST could come off before the front differential case rear tapered roller bearing (inner race) comes off.

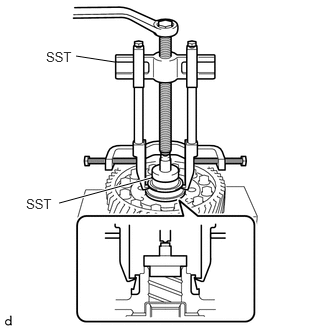

    2. If the roller portion breaks and SST comes off, reattach SST to the inner race in the position shown in the illustration, and continue removing the parts.
      • SST: 09950-40011
        1. 09951-04010
        2. 09952-04010
        3. 09953-04030
        4. 09954-04020
        5. 09955-04011
        6. 09957-04010
        7. 09958-04011
      • SST: 09950-60011
        1. 09951-00340
        2. 09951-00440
        3. 09952-06010
      GTY690490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE)

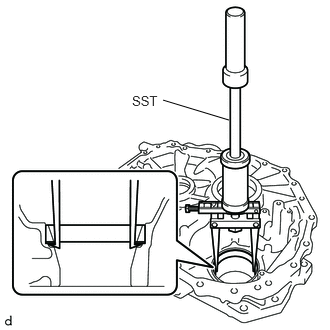

    1. Using SST, remove the front differential case front tapered roller bearing (outer race) and differential drive pinion shim from the transaxle housing.
      GTY724048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-36010
      NOTE:

      Be careful not to damage the transaxle housing.

      HINT:

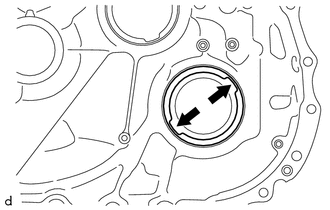

      Align the claw of SST with the indentation of the transaxle housing when removing the parts.

      GTY733681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE)

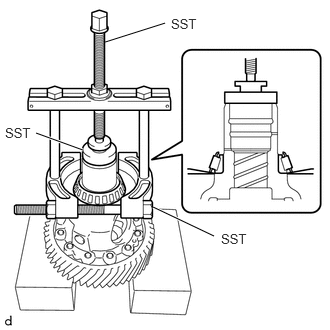

    1. Using SST, remove the front differential case front tapered roller bearing (inner race) from the differential case assembly.
      • SST: 09950-00020
      • SST: 09950-00030
      • SST: 09950-60011
        1. 09951-00440
      GTY698036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
