Inspection [12/2019 - 10/2022]: Procedure

  1. INSPECT DIFFERENTIAL CASE ASSEMBLY

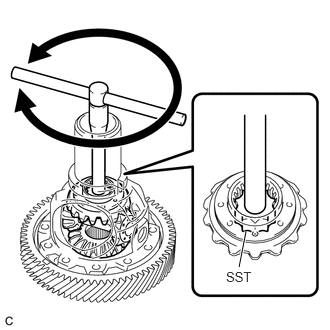

    1. Using SST, rotate the front differential side gear as shown in the illustration.
      GTY710077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09528-52010
        1. 09528-05030

      Standard

      The front differential side gear does not lock when rotated in either direction.

      If the result is not as specified, replace the differential case assembly.
