On-Vehicle Inspection [12/2019 - 10/2022]: Procedure

  1. INSPECT V-RIBBED BELT

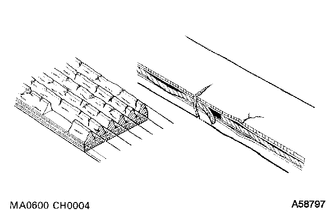

    1. Check the V-ribbed belt for wear, cracks or other signs of damage.
      GTY377881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If any of the following defects is found, replace the V-ribbed belt.

      • The V-ribbed belt is cracked.
      • The V-ribbed belt is worn to the extent that the cords are exposed.
      • The V-ribbed belt has chunks missing from the ribs.
    2. Check that the V-ribbed belt fits properly in the ribbed grooves.
      GTY452814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Correct
      *b Incorrect

      HINT:

      Make sure to check by hand that the V-ribbed belt has not slipped out of the grooves on the bottom of the pulley. If it has slipped out, replace the V-ribbed belt. Install a new V-ribbed belt correctly.
