Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL BATTERY
    1. Install the battery to the vehicle.
    2. Install the No. 2 battery clamp to the battery clamp sub-assembly with the bolt.

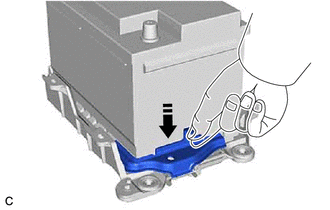

      GTY888278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 18.5 N.m (189 kgf/cm, 14 ft.lbf)

    3. Connect the cable to the positive (+) battery terminal and tighten the nut.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

    4. Engage the 2 claws to install the battery terminal cap to the positive (+) battery terminal.
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    1. Connect the cable to the negative (-) battery terminal and tighten the nut.

      w/ Stop and Start System:

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

      w/o Stop and Start System:

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

      NOTE:

      When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

      Refer to INITIALIZATION [12/2019 - 09/2020] , or refer to INITIALIZATION [09/2020 - 10/2021] , or refer to INITIALIZATION [10/2021 - 10/2022]

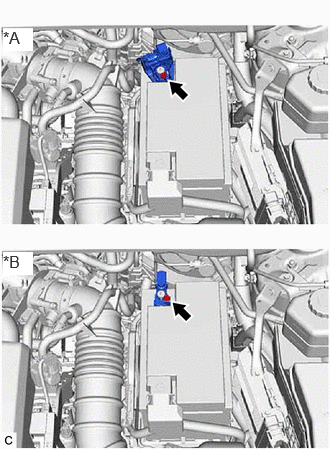

      GTY861132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stop and Start System
      *B w/o Stop and Start System
