On-Vehicle Inspection [12/2019 - 10/2022]: Procedure

INSPECT FOR COOLANT LEAK

WARNING:

Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.

Remove the radiator cap sub-assembly.

Fill the radiator assembly with engine coolant, and then install a radiator cap tester.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

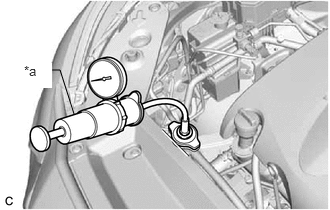

*a	Radiator Cap Tester

Warm up the engine.
Pump the radiator cap tester to 103 kPa (1.1 kgf/cm² , 15 psi), and then check that the pressure does not drop.
- If the pressure drops, check the hoses, radiator assembly and engine water pump assembly for leaks.
- If there are no signs of external engine coolant leaks, check the heater core, cylinder block sub-assembly and cylinder head sub-assembly.
Remove the radiator cap tester.
Install the radiator cap sub-assembly.

INSPECT ENGINE COOLANT LEVEL IN RESERVOIR TANK

Check that the engine coolant level is between the LOW line and FULL line when the engine is cold.

*a	FULL Line
*b	LOW Line

If the engine coolant level is low, check for leaks and add engine coolant to the FULL line.

NOTE:

Do not substitute plain water for engine coolant.

INSPECT ENGINE COOLANT QUALITY
WARNING:
Do not remove the radiator cap sub-assembly while the engine and radiator assembly are still hot. Pressurized, hot engine coolant and steam may be released and cause serious burns.
1. Remove the radiator cap sub-assembly.
2. Check if there are any excessive deposits of rust or scale around the radiator cap sub-assembly and water filler hole. Also, the engine coolant should be free of oil.
  If excessively dirty, replace the engine coolant.
3. Install the radiator cap sub-assembly.
