Components [12/2019 - 10/2022]
Fig 1: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FENDER APRON SEAL RH | *2 | V-BANK COVER SUB-ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

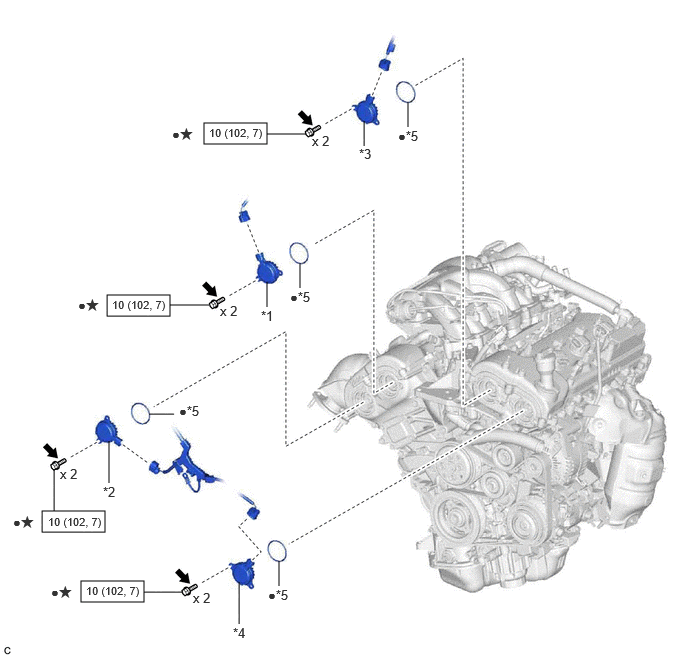

Fig 2: Camshaft Oil Control Solenoid Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1) | *2 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1) |
| *3 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) | *4 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
| *5 | O-RING | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
|
Adhesive 1324 | * | Precoated part |
