Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 23 [09/2020 - 10/2022]

  2. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2)
    1. Disconnect the camshaft timing oil control solenoid assembly connector.

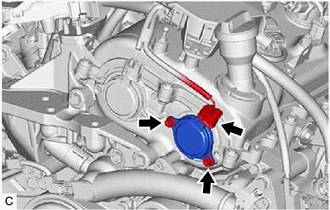

      GTY888350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
      NOTE:

      If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

    3. Remove the O-ring from the camshaft timing oil control solenoid assembly.
      NOTE:
      • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
      • Do not drop the O-ring into the timing chain cover assembly.
  3. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 1)
    1. Disconnect the camshaft timing oil control solenoid assembly connector.

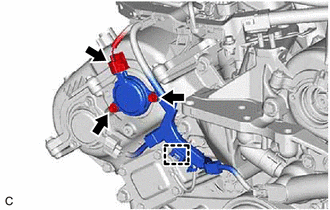

      GTY766143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp to disconnect the engine wire.
    3. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
      NOTE:

      If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

    4. Remove the O-ring from the camshaft timing oil control solenoid assembly.
      NOTE:
      • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
      • Do not drop the O-ring into the timing chain cover assembly.
  4. REMOVE FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 16 [12/2019 - 09/2020] , or refer to PROCEDURE - Step 16 [09/2020 - 10/2022]

  5. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 1)
    1. Disconnect the camshaft timing oil control solenoid assembly connector.

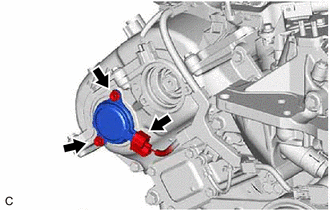

      GTY766142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
      NOTE:

      If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

    3. Remove the O-ring from the camshaft timing oil control solenoid assembly.
      NOTE:
      • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
      • Do not drop the O-ring into the timing chain cover assembly.
  6. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [12/2019 - 09/2020] , or refer to REMOVAL [09/2020 - 10/2022]

  7. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2)
    1. Disconnect the camshaft timing oil control solenoid assembly connector.

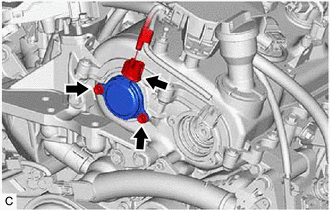

      GTY888351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
      NOTE:

      If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

    3. Remove the O-ring from the camshaft timing oil control solenoid assembly.
      NOTE:
      • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
      • Do not drop the O-ring into the timing chain cover assembly.
