Inspection [12/2019 - 10/2022]: Procedure

HINT:

Use the same procedure for the intake side and exhaust side.

1. Check the resistance.
   1. Measure the resistance according to the value(s) in the table below.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Component without harness connected (Camshaft Timing Oil Control Solenoid Assembly)

      Standard Resistance

      Tester Connection	Condition	Specified Condition
      1 - 2	0°C (32°F)	5.3 to 6.3 Ω
      	20°C (68°F)	5.8 to 6.8 Ω
      	40°C (104°F)	6.2 to 7.4 Ω

      If the result is not as specified, replace the camshaft timing oil control solenoid assembly.

2. Stroke Amount Inspection

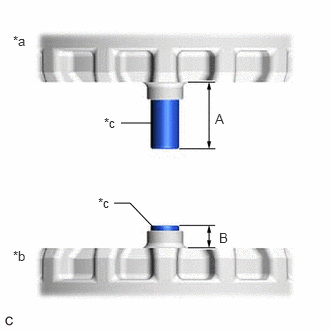

   1. Using vernier calipers, measure length (A) and (B) with the shaft of the camshaft timing oil control solenoid assembly set in the respective positions shown in the illustration.
      NOTE:

      Do not apply battery voltage to the terminals of the camshaft timing oil control solenoid assembly.

      HINT:

      If the shaft does not extend under its own weight, extend the shaft with your fingers.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Shaft Side Facing Down
      *b	Shaft Side Facing Up
      *c	Shaft

   2. Calculate the stroke amount based on the difference of length (A) and (B).

      Standard

      6.5 mm (0.256 in.) or more

      HINT:

      Stroke amount = length (A) - length (B)

      If the value is not as specified, replace the camshaft timing oil control solenoid assembly.
