Removal [12/2019 - 10/2022]: Procedure

Refer to PROCEDURE - Step 1

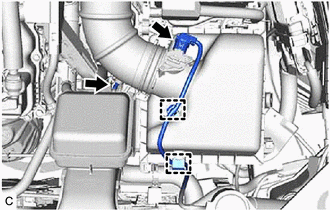

1. Disconnect the mass air flow meter sub-assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 wire harness clamps.
3. Disconnect the vacuum hose from the air cleaner hose.
4. Remove the vacuum hose bracket from the air cleaner hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 1 Fuel Vapor Feed Hose
   *2	No. 2 Ventilation Hose
   *3	Vacuum Hose Bracket

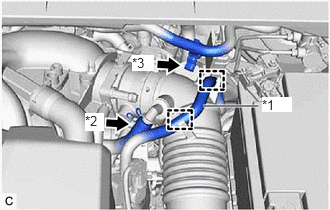

5. Disengage the 2 clamps to disconnect the No. 1 fuel vapor feed hose from the air cleaner hose.
6. Slide the clip and disconnect the No. 2 ventilation hose from the air cleaner hose.

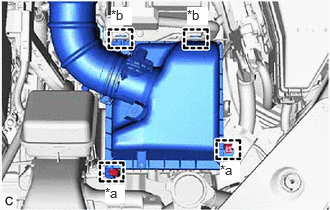

7. Disengage the 2 air cleaner cap clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Air Cleaner Cap Clamp
   *b	Guide

8. Disengage the 2 guides to separate the air cleaner cap sub-assembly from the air cleaner case sub-assembly.

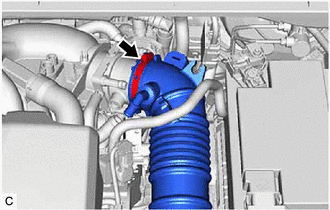

9. Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body with motor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

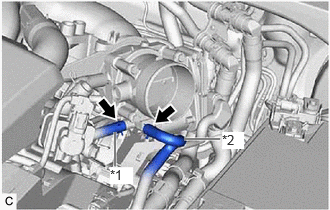

1. Slide the 2 clips and disconnect the No. 2 water by-pass hose and No. 3 water by-pass hose from the throttle body with motor assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	No. 2 Water By-pass Hose
   *2	No. 3 Water By-pass Hose

2. Disconnect the throttle body with motor assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

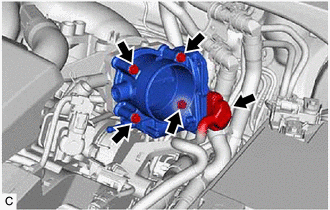

3. Remove the 4 bolts and throttle body with motor assembly from the intake air surge tank assembly.
   NOTE:

   If the throttle body with motor assembly has been struck or dropped, replace it.

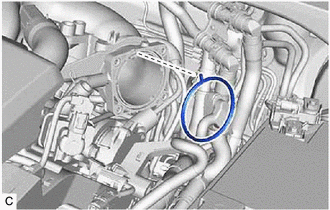

1. Remove the throttle body gasket from the intake air surge tank assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
