Components [12/2019 - 10/2022]

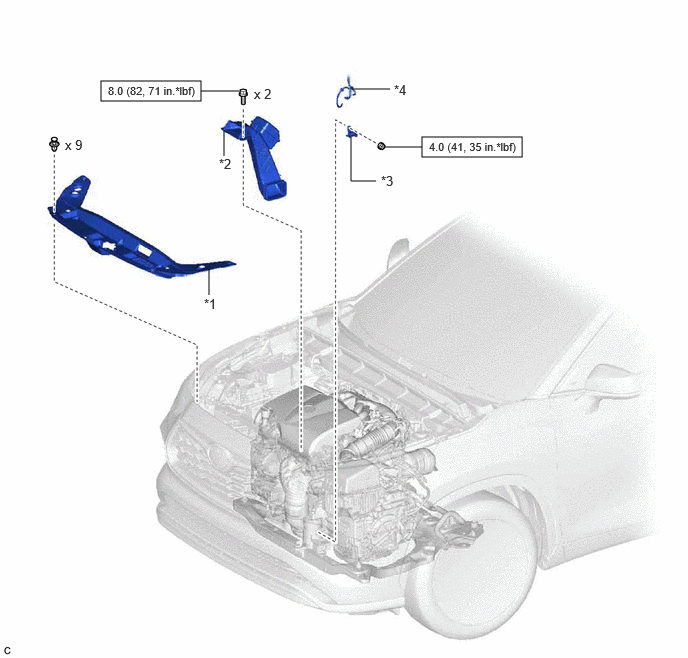

Fig 1: Vacuum Switching Valve (For Engine Mounting) Replacement Components With Torque Specifications [12/2019 - 10/2022]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | INLET AIR CLEANER ASSEMBLY |
| *3 | VACUUM SWITCHING VALVE (for Active Control Engine Mount System) | *4 | VACUUM HOSE |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
