Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [12/2019 - 10/2022]

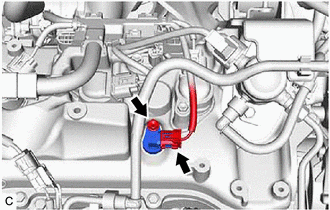

  2. REMOVE VVT SENSOR (for Intake Side of Bank 1)
    1. Disconnect the VVT sensor connector.
      GTY888076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

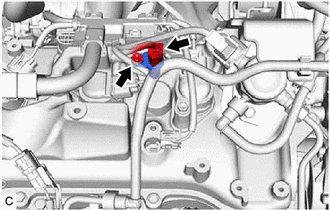

  3. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)
    1. Disconnect the VVT sensor connector.
      GTY888077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

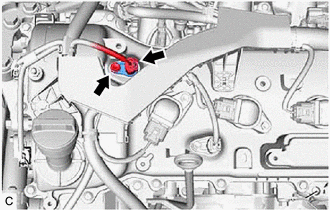

  4. REMOVE VVT SENSOR (for Intake Side of Bank 2)
    1. Disconnect the VVT sensor connector.
      GTY888078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.

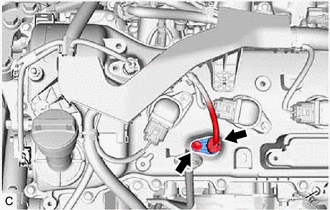

  5. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)
    1. Disconnect the VVT sensor connector.
      GTY888066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and VVT sensor from the cylinder head cover sub-assembly LH.
      NOTE:

      If the VVT sensor has been struck or dropped, replace it.
