Installation [12/2019 - 10/2022]: Procedure

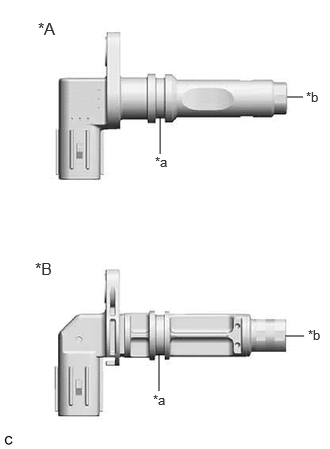

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	Type A
   *B	Type B
   *a	O-ring Groove
   *b	Crankshaft Position Sensor Tip

   Perform this procedure only when reusing the crankshaft position sensor.

   1. Clean the O-ring groove of the crankshaft position sensor.
      NOTE:

      Make sure the O-ring groove is free of foreign matter.

   2. Install a new O-ring to the crankshaft position sensor.
      NOTE:

      Set the O-ring on the tip of the crankshaft position sensor and roll it into the O-ring groove with bare hands to install it.

   3. Check if the O-ring is twisted.

      HINT:

      Check the entire circumference of the seam of the O-ring for twisting.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *1	O-ring
      *a	OK
      *b	NG
      *c	Seam

2. Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.
3. Install the crankshaft position sensor to the cylinder block sub-assembly with the bolt.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   NOTE:

   • If the crankshaft position sensor has been struck or dropped, replace it.
   • Make sure that the O-ring is not cracked or moved out of place when installing the crankshaft position sensor.
4. Connect the crankshaft position sensor connector.

1. Install the crankshaft position sensor protector to the cylinder block sub-assembly and oil pan sub-assembly with the 3 bolts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

2. Install the hose clamp to the crankshaft position sensor protector with the nut.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

Refer to INSTALLATION [12/2019 - 10/2022]
