Removal [12/2019 - 10/2022]: Procedure

  1. REMOVE AIR FUEL RATIO SENSOR (for Bank 2)
    1. Disengage the wire harness clamp.

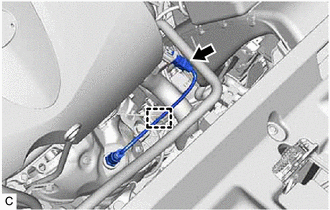

      GTY888541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the air fuel ratio sensor connector.
    3. Using SST, remove the air fuel ratio sensor from the exhaust manifold assembly LH (TWC: Front Catalyst).
      • SST: 09224-00012
      NOTE:

      If the air fuel ratio sensor has been struck or dropped, replace it.

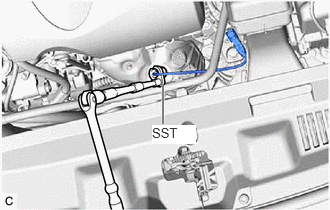

      GTY937630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE EXHAUST MANIFOLD ASSEMBLY RH (TWC: Front Catalyst)

    Refer to REMOVAL [12/2019 - 10/2022]

  3. REMOVE AIR FUEL RATIO SENSOR (for Bank 1)
    1. Using SST, remove the air fuel ratio sensor from the exhaust manifold assembly RH (TWC: Front Catalyst).

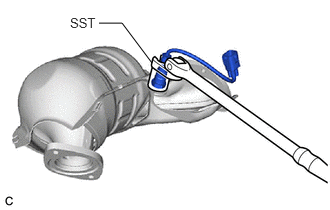

      GTY939957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00012
      NOTE:

      If the air fuel ratio sensor has been struck or dropped, replace it.
