Installation [12/2019 - 10/2022]: Procedure

HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Refer to INITIALIZATION [12/2019 - 10/2022]

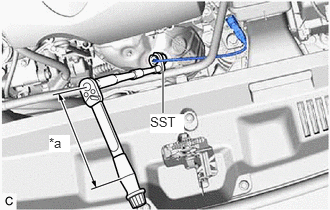

1. Using SST, install the air fuel ratio sensor to the exhaust manifold assembly RH (TWC: Front Catalyst).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length

   • SST: 09224-00012

   Specified tightening torque

   Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

   NOTE:

   If the air fuel ratio sensor has been struck or dropped, replace it.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [12/2019 - 11/2023]

   • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

     37.7 N.m (384 kgf/cm, 28 ft.lbf)

Refer to INSTALLATION [12/2019 - 10/2022]

HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Refer to INITIALIZATION [12/2019 - 10/2022]

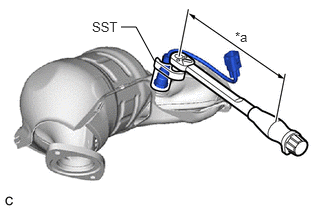

1. Using SST, install the air fuel ratio sensor to the exhaust manifold assembly LH (TWC: Front Catalyst).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length

   • SST: 09224-00012

   Specified tightening torque

   Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

   NOTE:

   If the air fuel ratio sensor has been struck or dropped, replace it.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [12/2019 - 11/2023]

   • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

     37.7 N.m (384 kgf/cm, 28 ft.lbf)

2. Connect the air fuel ratio sensor connector.
3. Engage the wire harness clamp.

Refer to PROCEDURE - Step 6

1. Perform "Inspection After Repair" after replacing an air fuel ratio sensor.

   Refer to INITIALIZATION [12/2019 - 10/2022]
