Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL HEATED OXYGEN SENSOR (for Bank 2)

    HINT:

    Perform "Inspection After Repair" after replacing the heated oxygen sensor.

    Refer to INITIALIZATION [12/2019 - 10/2022]

    1. Using SST, install the heated oxygen sensor to the front exhaust pipe assembly.
      GTY862280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      • SST: 09224-00012

      Specified tightening torque

      Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [12/2019 - 11/2023]

      • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

        37.7 N.m (384 kgf/cm, 28 ft.lbf)

  2. INSTALL HEATED OXYGEN SENSOR (for Bank 1 AWD)

    HINT:

    Perform "Inspection After Repair" after replacing the heated oxygen sensor.

    Refer to INITIALIZATION [12/2019 - 10/2022]

    1. Using SST, install the heated oxygen sensor to the front exhaust pipe assembly.

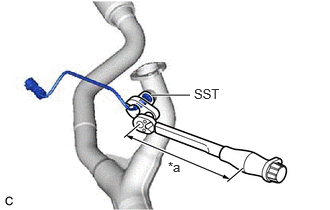

      GTY932894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      • SST: 09224-00012

      Specified tightening torque

      Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [12/2019 - 11/2023]

      • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

        37.7 N.m (384 kgf/cm, 28 ft.lbf)

  3. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    Refer to INSTALLATION [12/2019 - 10/2022]

  4. INSTALL HEATED OXYGEN SENSOR (for Bank 1 2WD)

    HINT:

    Perform "Inspection After Repair" after replacing the heated oxygen sensor.

    Refer to INITIALIZATION [12/2019 - 10/2022]

    1. Using SST, install the heated oxygen sensor to the front exhaust pipe assembly.

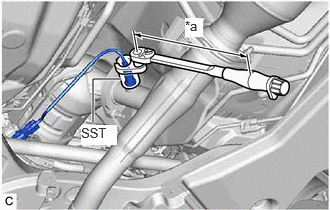

      GTY858744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      • SST: 09224-00012

      Specified tightening torque

      Torque: 44 N.m (449 kgf/cm, 32 ft.lbf)

      NOTE:

      If the heated oxygen sensor has been struck or dropped, replace it.

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [12/2019 - 11/2023]

      • When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)):

        37.7 N.m (384 kgf/cm, 28 ft.lbf)

    2. Engage the 2 wire harness clamps so that the tube is positioned as shown in the illustration.
      GTY849315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Tube
      *b Wire Harness Clamp
    3. Connect the heated oxygen sensor connector.
  5. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 6

  6. INSTALL FRONT FLOOR COVER LH (for Bank 1 2WD)

    Refer to PROCEDURE - Step 13
