Components [12/2019 - ]

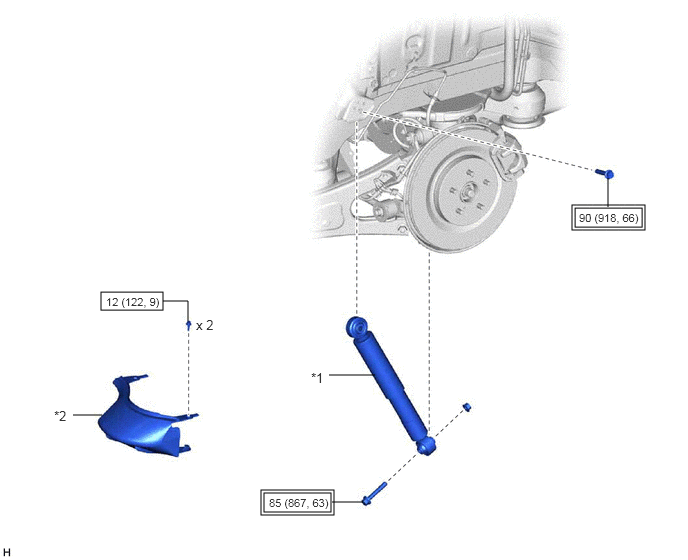

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR SHOCK ABSORBER ASSEMBLY	*2	REAR SUSPENSION ARM COVER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

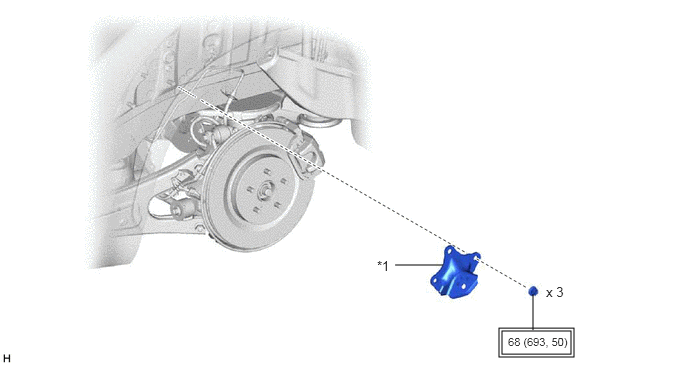

Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	REAR UPPER SHOCK ABSORBER BRACKET	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-
