Components [12/2019 - ]

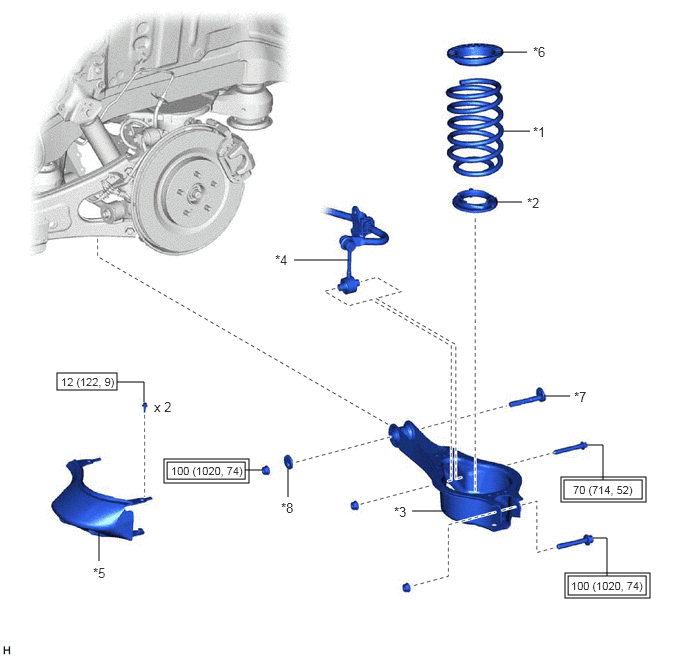

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR COIL SPRING | *2 | REAR LOWER COIL SPRING INSULATOR |
| *3 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *4 | REAR STABILIZER LINK ASSEMBLY |
| *5 | REAR SUSPENSION ARM COVER | *6 | REAR UPPER COIL SPRING INSULATOR |
| *7 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY | *8 | REAR NO. 2 SUSPENSION CAMBER ADJUST CAM |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | |
N.m (kgf/cm, ft.lbf): Specified torque |

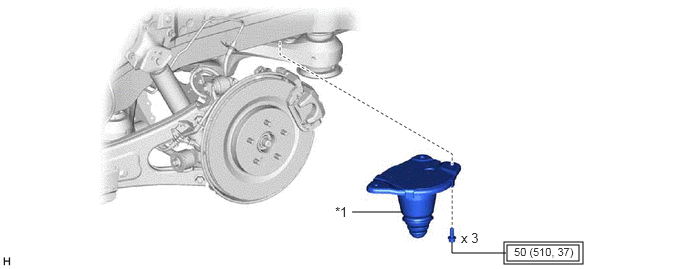

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | SPRING SEAT SUB-ASSEMBLY | - | - |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
