DSD Information System
Home
>>
Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Collision/Avoidance
>>
Monitor System - Service Information
>>
Parking Assist Ecu
>>
Components [10/2022 - ]
Components [10/2022 - ]

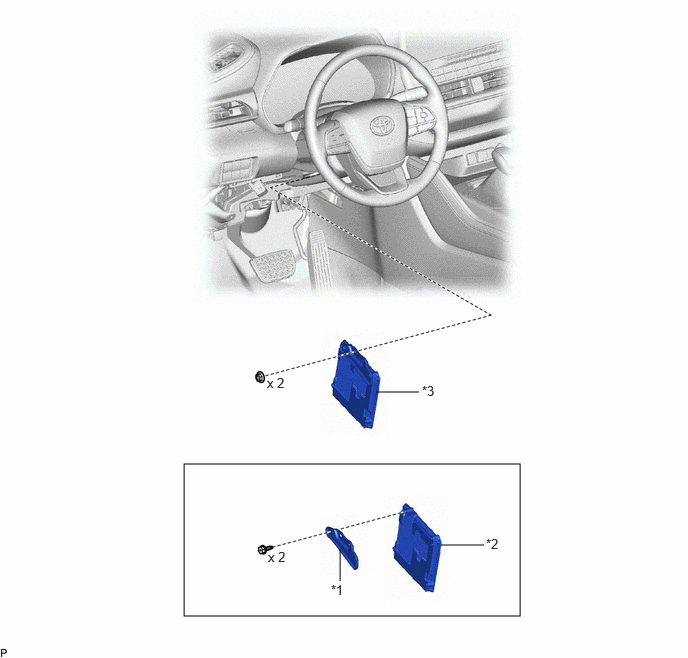

Fig 1: Parking Assist ECU Replacement Components [10/2022 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
NO. 1 PARKING ASSIST ECU BRACKET
*2
PARKING ASSIST ECU
*3
PARKING ASSIST ECU WITH BRACKET
-
-
